2008 Zund L 3000 CV Cutting System

ALI Reference #: 106152

Details:

• Max area: 118" x 71"
• rugged, welded construction
• all axes with highly dynamic DC-motor drives
• knife and service friendly acrylic table top
• Resolution of measuring system 0.005 mm / 0.0002 in.
• Speed 1-1000 mm/s / 0.04 - 39 in./s max. speed depending on cutter size and tool head
• Acceleration max. 10 m/s2 / 400 in./s, 1G, depending on cutter size and tool head
• Max. material thickness standard up to 30 mm (1.18 in.) optional 60 mm (2.36 in.)

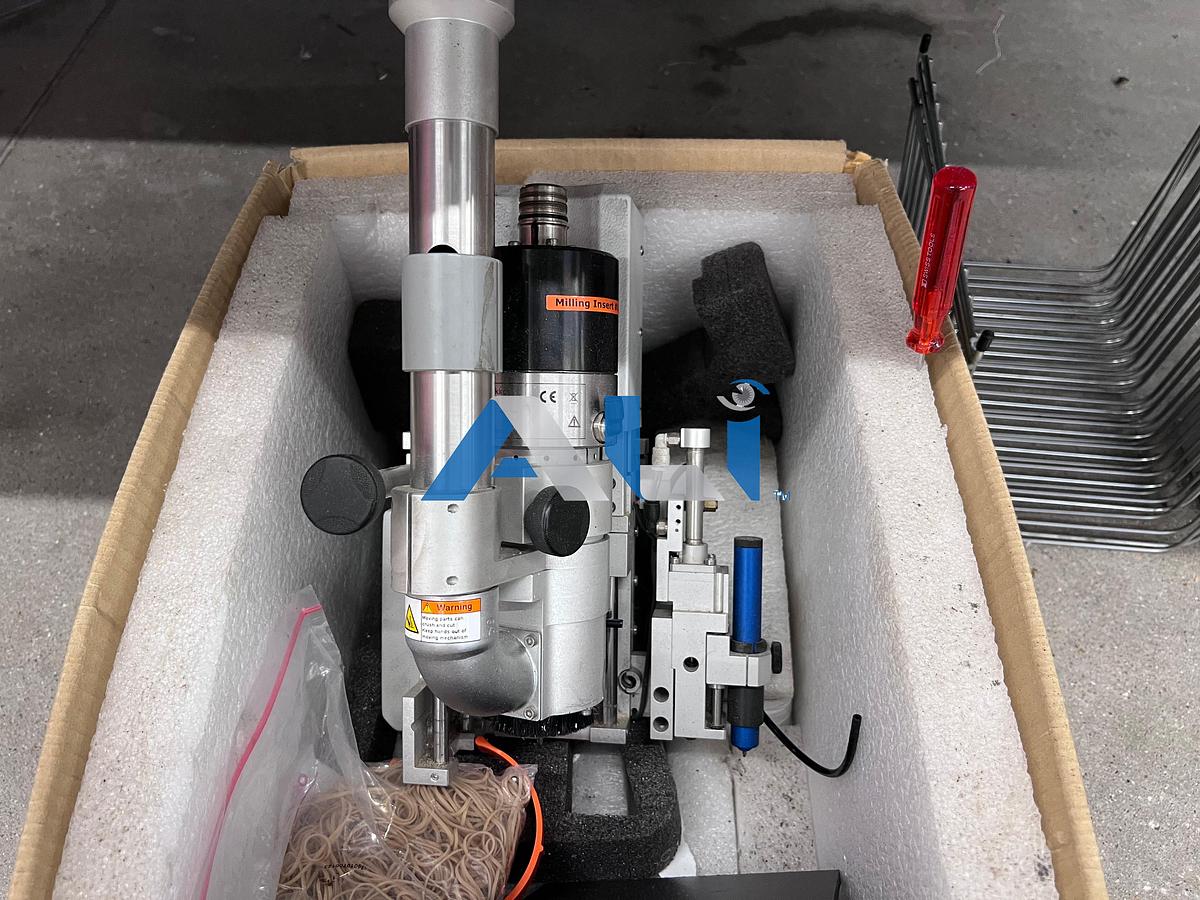

1kW high-performance router

• for routing materials up to

25 mm (1 in.) optional

50 mm (2 in.)

• servo-controlled z-axis

• user-selectable rpm

(5,000-50,000/min)

• high-performance dust

extraction
