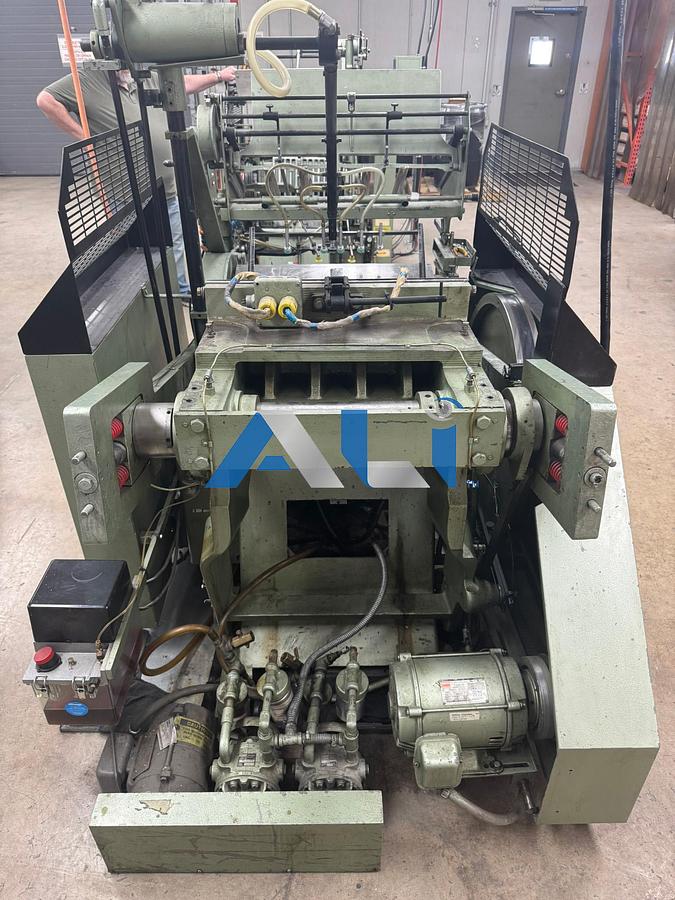

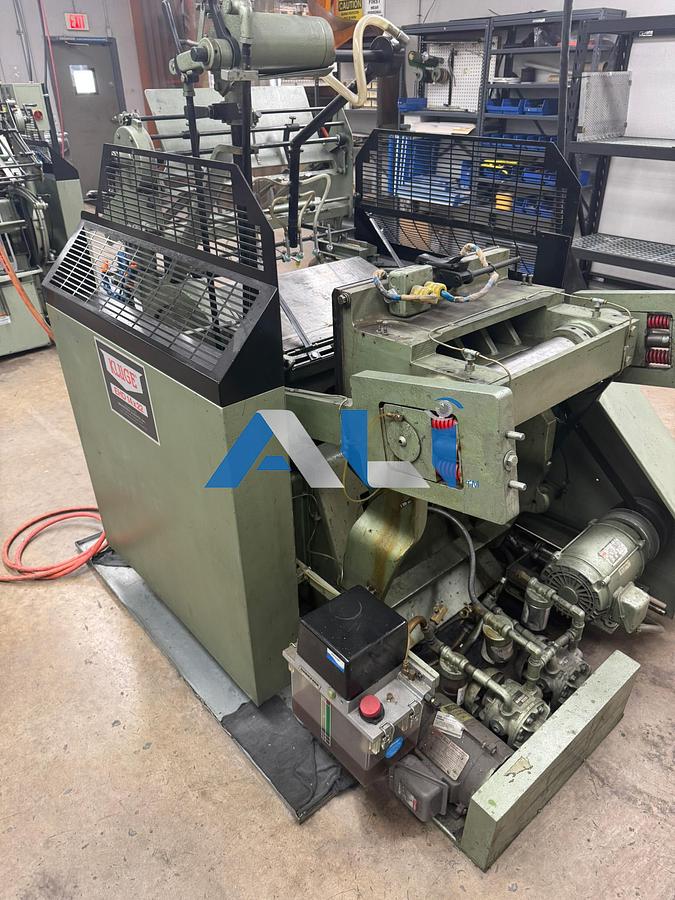

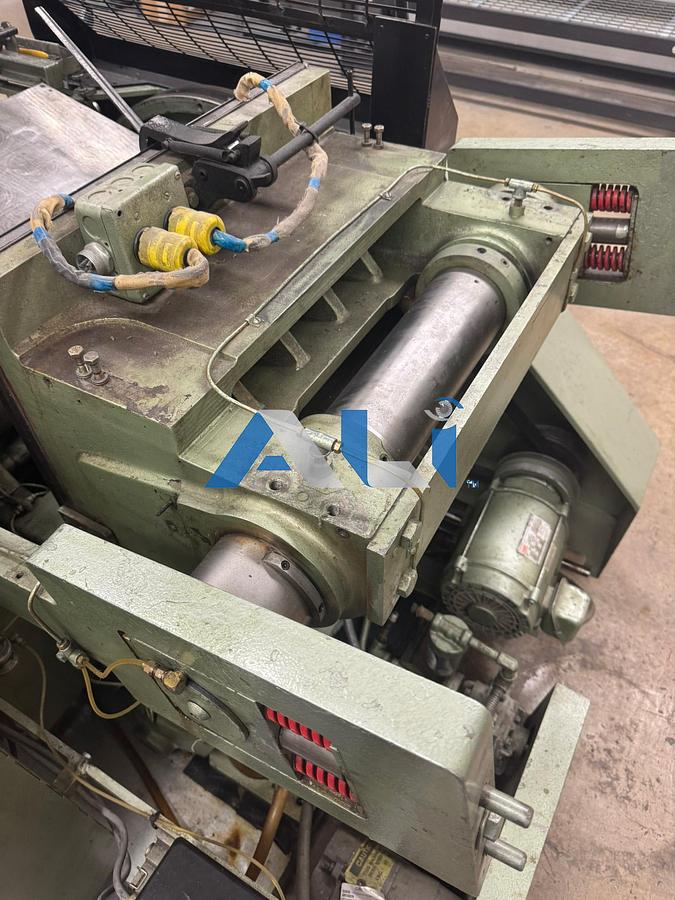

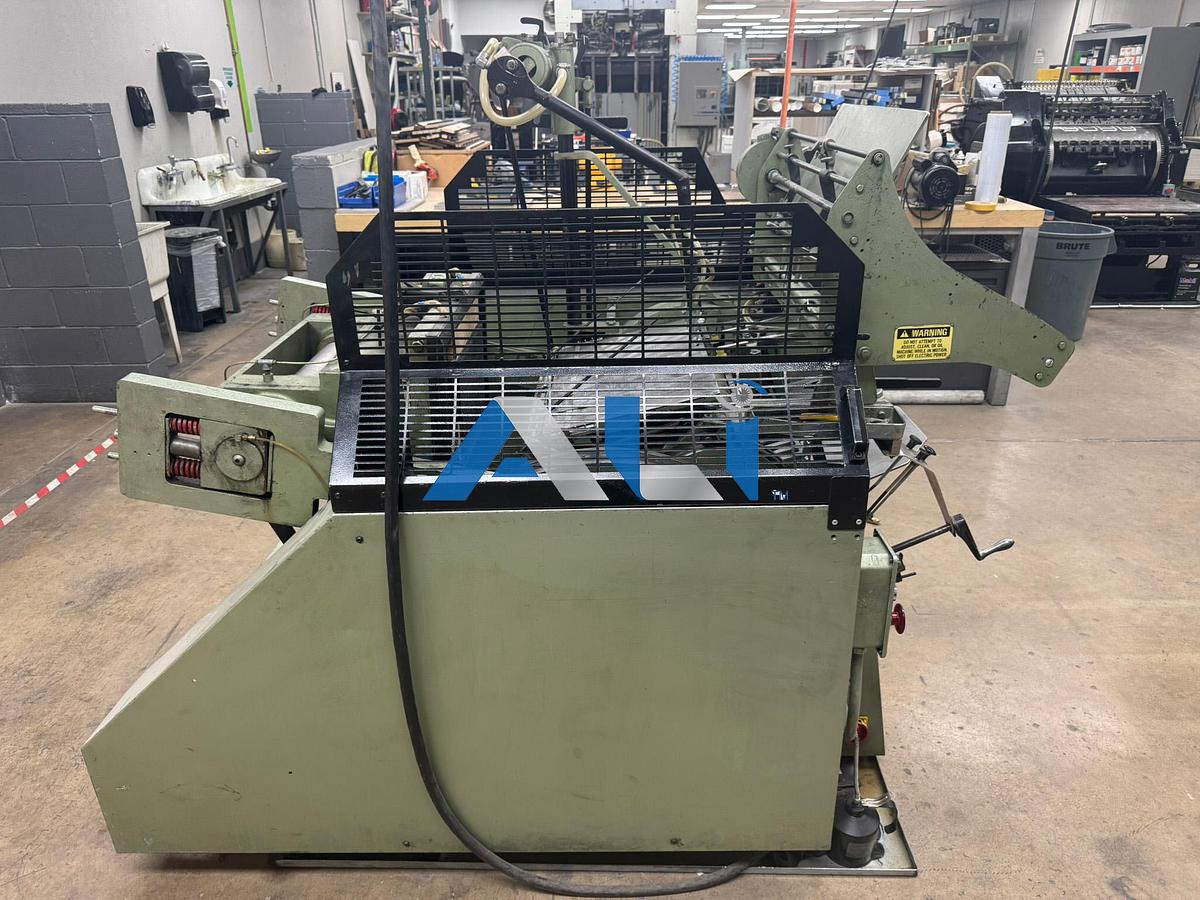

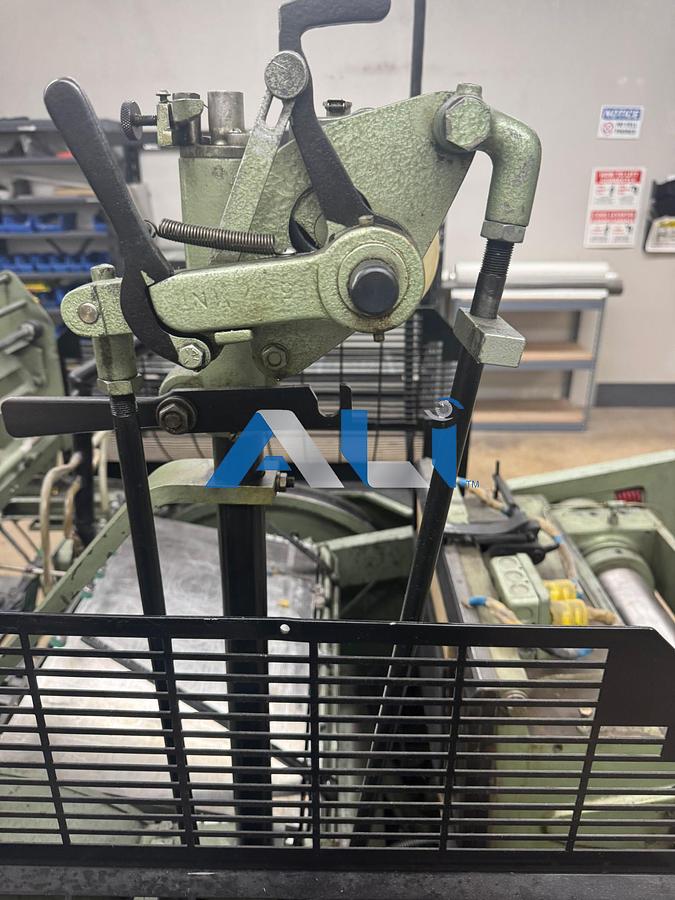

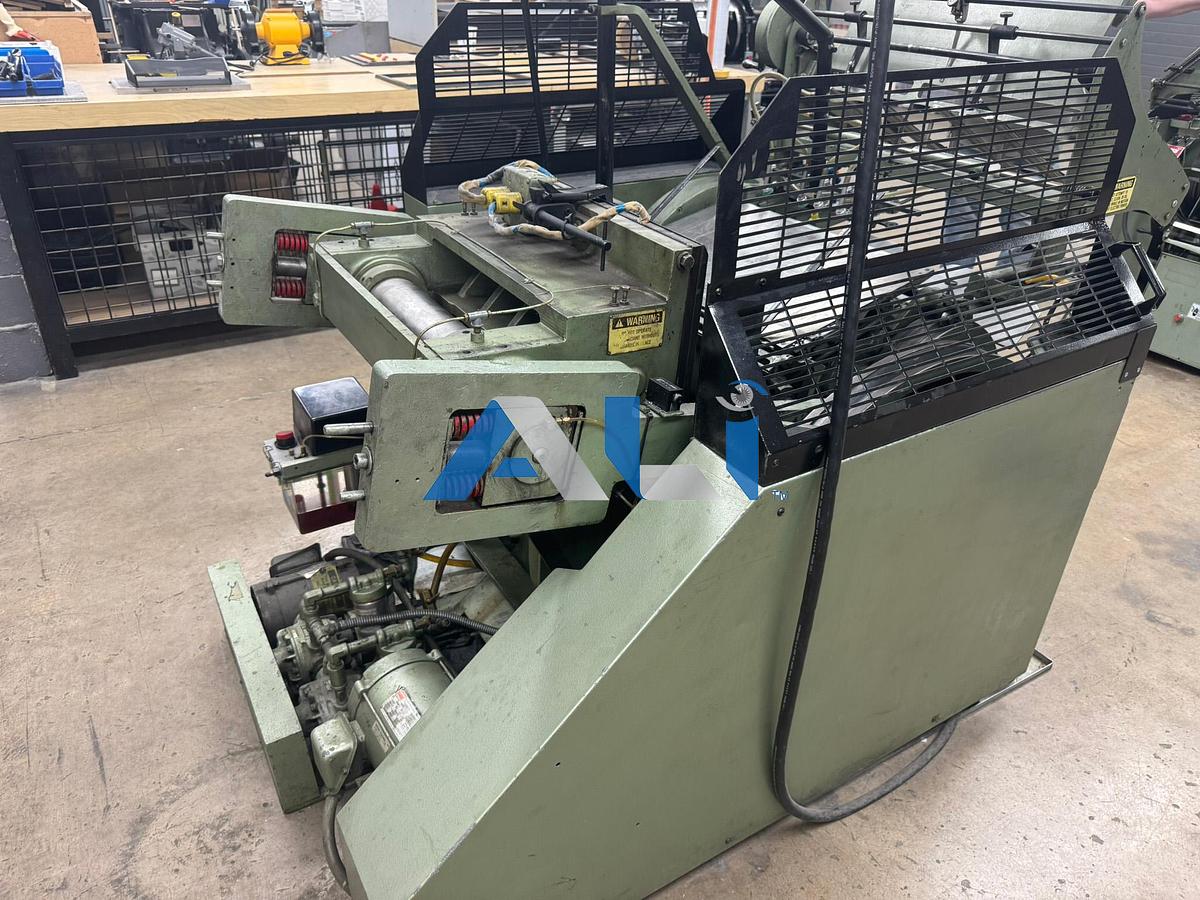

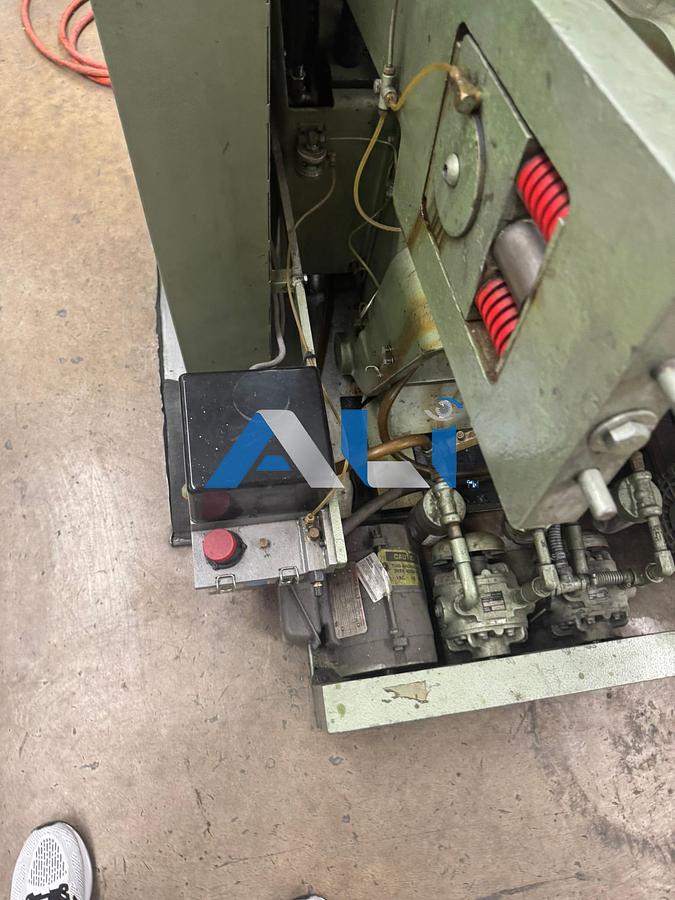

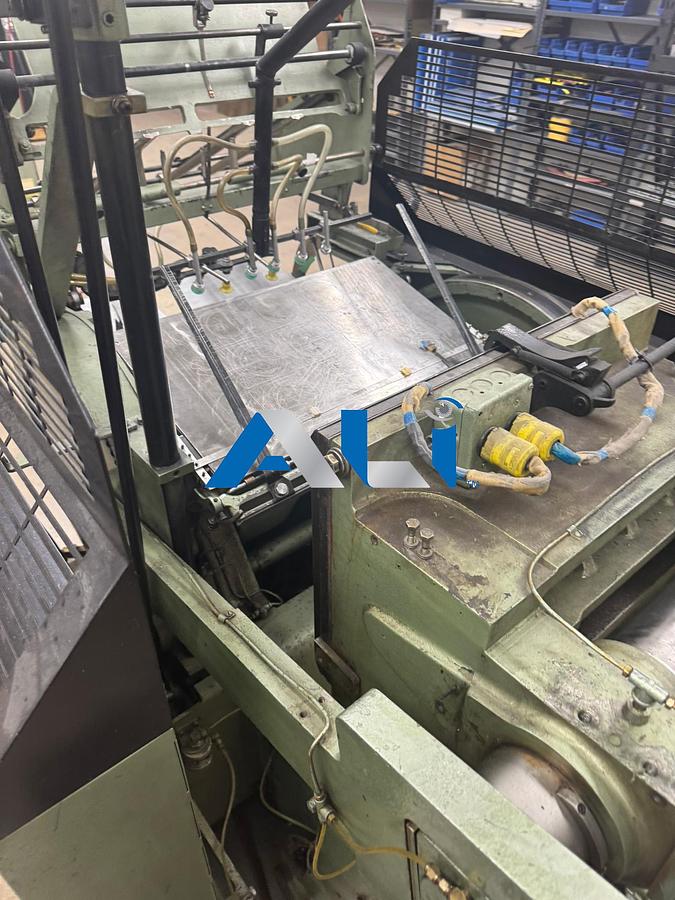

1993 Kluge EHD with Foil

ALI Reference #: 106221

• EHD Series
• Platen size: 14″ x 22″ (356 x 559 mm)
• Minimum sheet size: 4″ x 5″ (102 x 127 mm)
• Maximum sheet size*: 17″ x 24.75″ (431 x 628 mm)
• Magazine Capacity: 14″ (356 mm)
• Delivery Capacity: 14″ (356 mm)
• Air: 90 psi @ 10cfm
• Stock range: Onion Skin to .200″ board
• Inside Chase Dimensions: 14″ x 22″ (356 x 559 mm)
• Outside Chase Dimensions: 16.25″ x 23.5″ (413 x 597 mm)
• Main and Back Shaft Diameter: 4.375″ (111 mm)
• Maximum operating speed: 3,300 iph
• Machine power required: 3 h.p., A.C. 230/460 volt, 3 phase, 1800 rpm, 60 cycle
• Machine dimensions: 74″ x 50″ x 68″ (1880 x 1270 x 1727 mm)
• Total weight (approx.): 5000 lbs (2268 kg)
•
