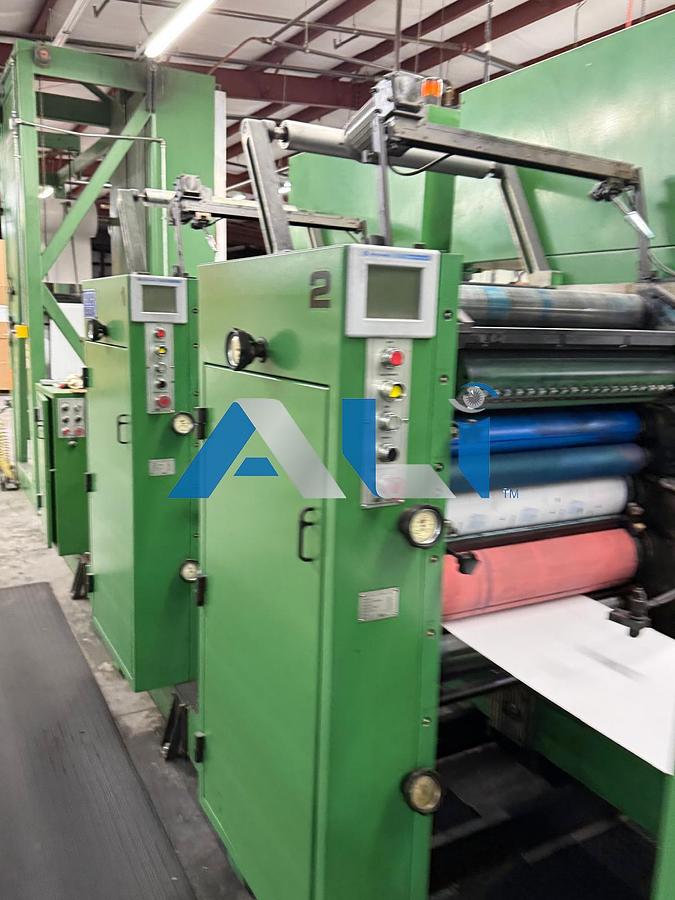

RDP 260 10 Color Scratch Off Press 22” x 26 ½” web width

’92 / ’96 / ‘ 2012 / ‘2013 RDP 260 10 Color Scratch Off Press

22” x 26 ½” web width

Press was used for Presser Sealer Mailers, Lottery Scratch Offs, Number Coupons, Postcards and can be used for more.

Originally 1992 Purchased with 4 units

In 1996 4 original units rebuilt with UV. 6 more units were added for 10 units with UV. Also installed in 1996 was a applying re-moist, scratch off, and varnish, as well as UV and RF drying capabilities.

2012 Hot air drying was added for aqueous coating.

2013 two sided silicone applicator added.

• GeneralSpeed - Mechanical Drive -50fpm to 1500fpm
• Gear Lubrication - Continuous oil bath  Drive Train - Tubular drive shaft with flexible steel disk couplings at gear boxes.
• Press Drive - Electric DC Drive 150 HP
• Max web width - 26 1/2"
• Max print width - 26"
• Print cylinder circumference - 22"  Web Break Detectors - Electric eye style mounted over the web  ET web guide
• Frames - 2" thick cast iron (34" inside frames)

• UnwindMartin Model EC Plus- 1526 Automatic Splicer
• Max splicing speed - 1500fpm
• Max web width - 26 1/2"
• Max roll weight - 1800 lbs
• Max roll diameter - 52"
• Two pneumatic core shafts (3", 5" dia)
• Web Cleaner
• Doyle Web Cleaner

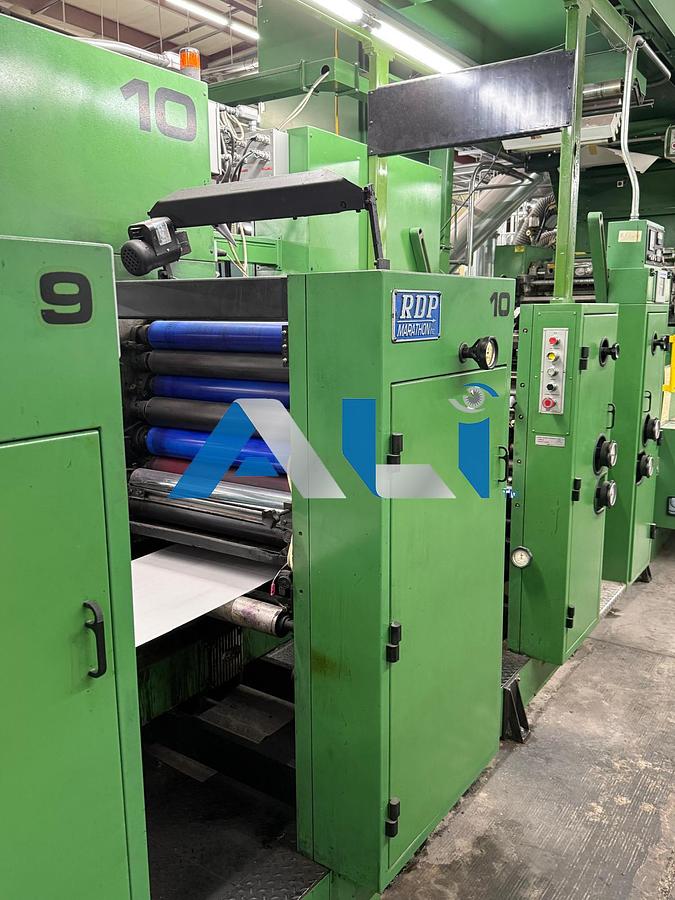

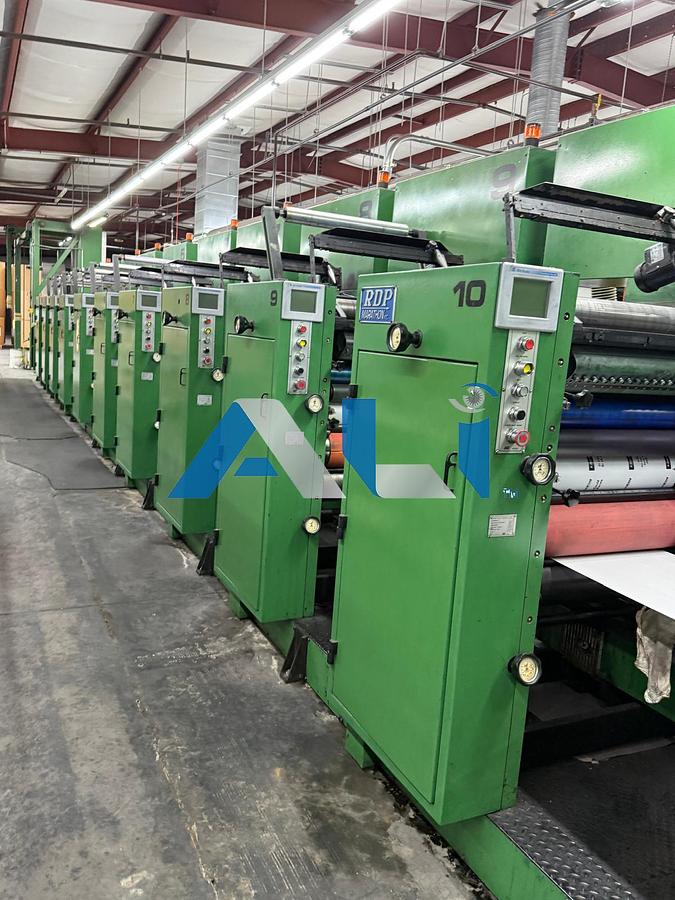

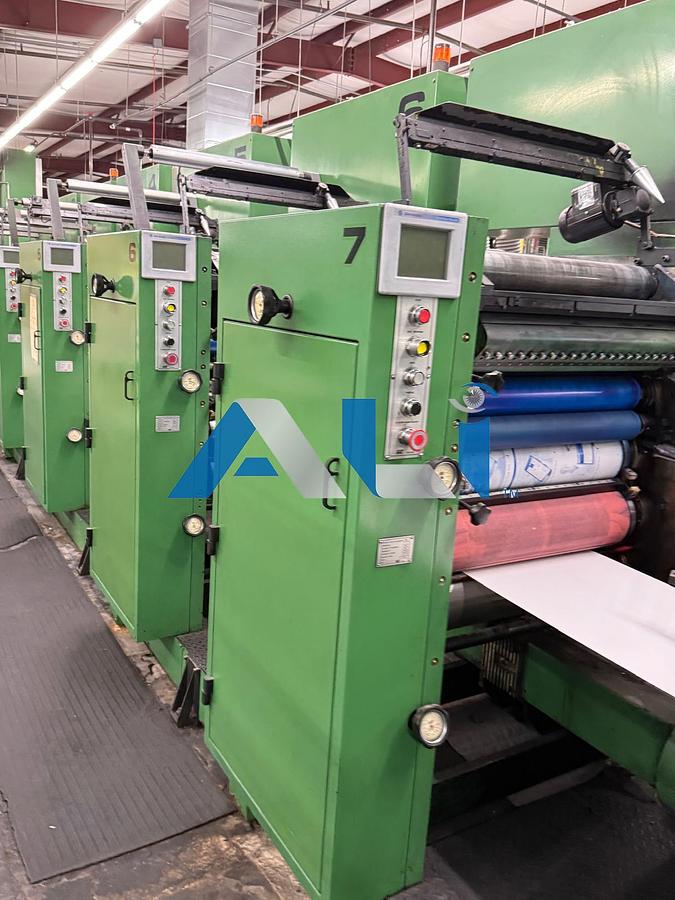

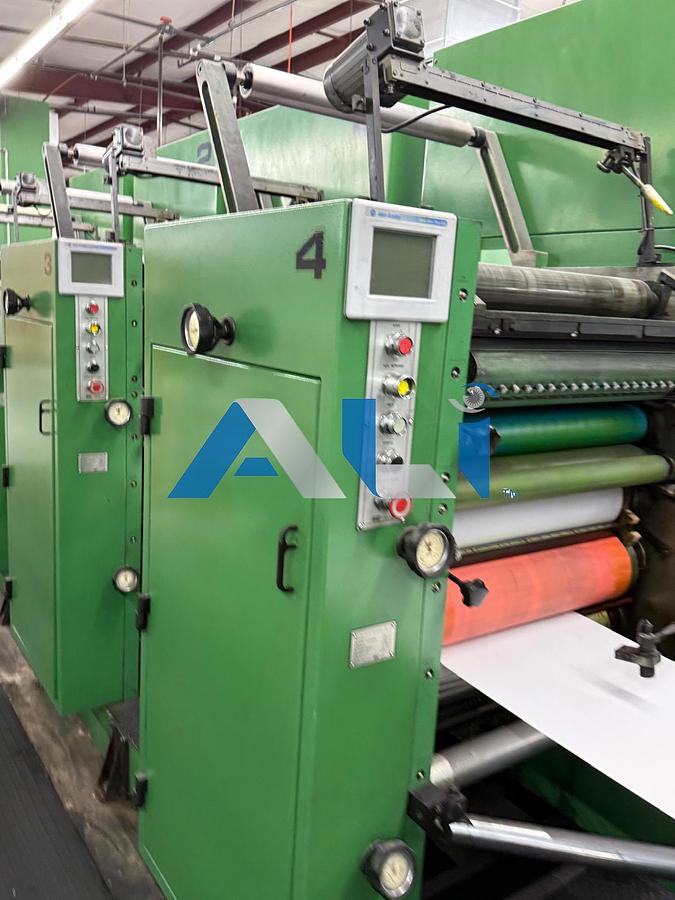

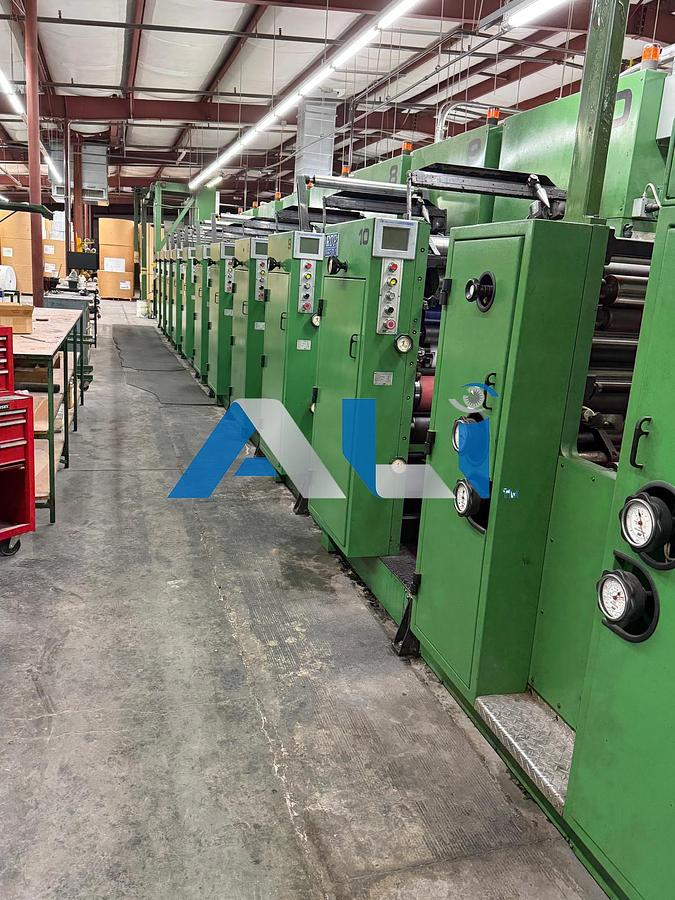

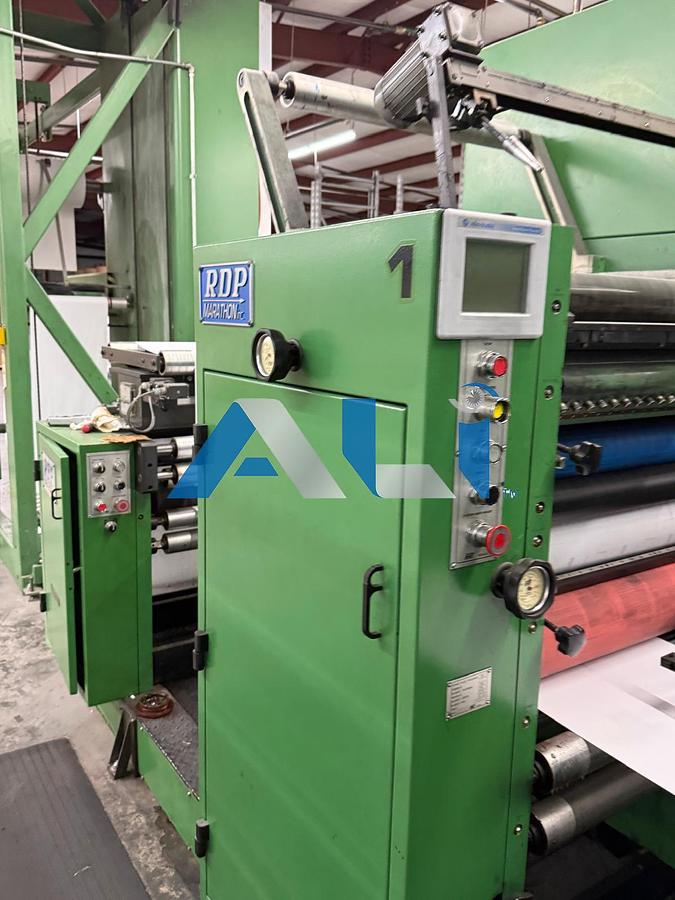

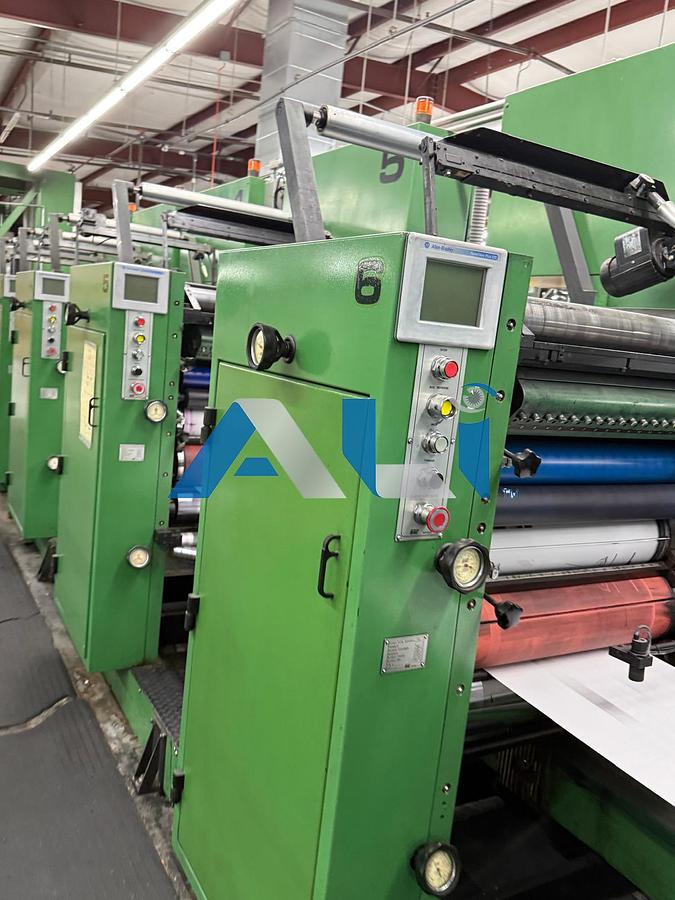

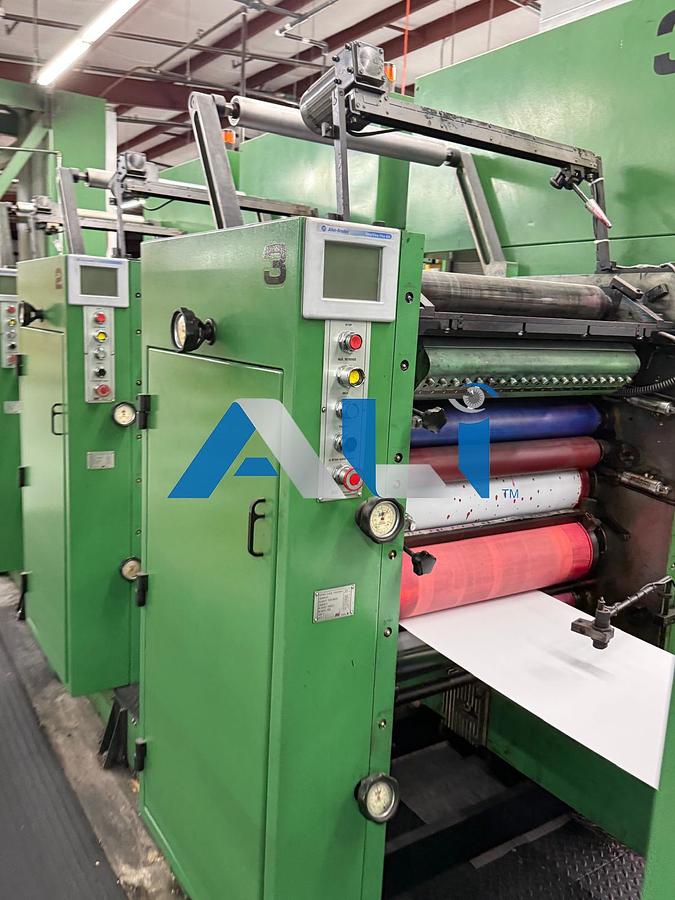

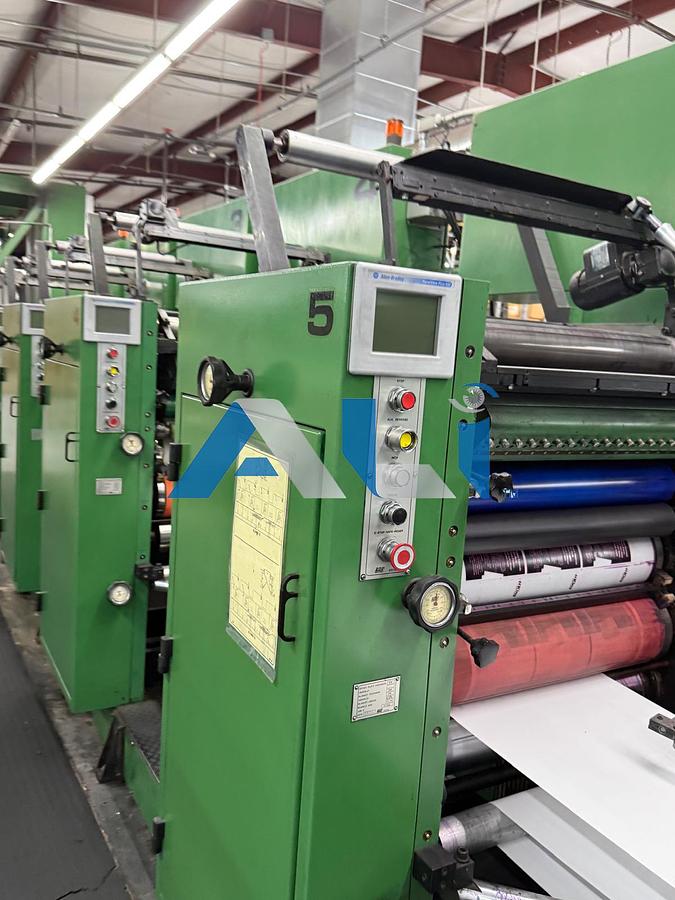

• Print UnitsNo. Units - 10
• Reel-in Blankets
• Motorized Circ. Register with remote control
• Motorized plate side lay with remote control
• Plate cylinder skewing and form roll adjustment
• Auxiliary Unit drive motors
• 360 deg circumferential gear boxes
• Dahlgren dampening system
• Master Flo SFIOO Central Refrigerated circulator for dampening (10 units)
• Chilled vibrators each unit (Master Flo Chiller)  Ink Agitators

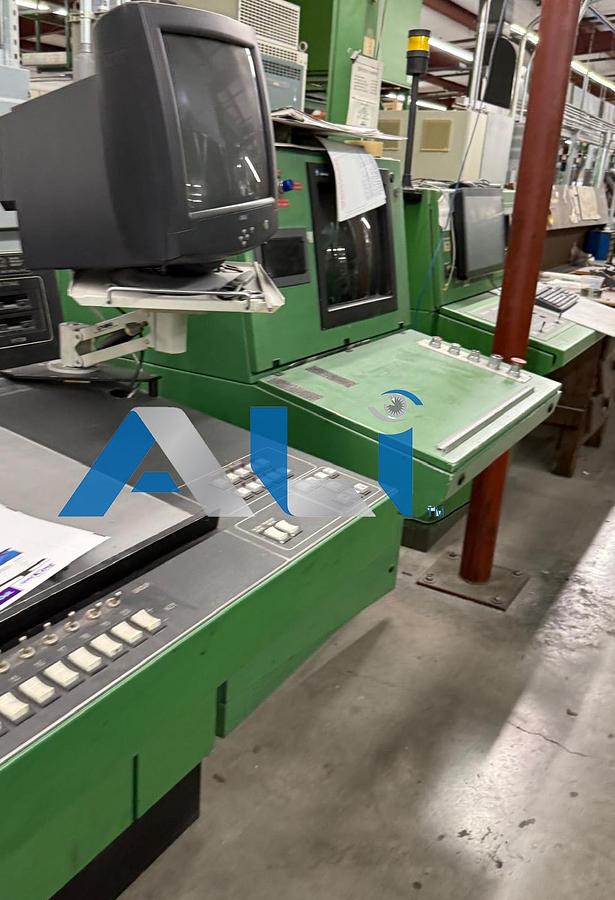

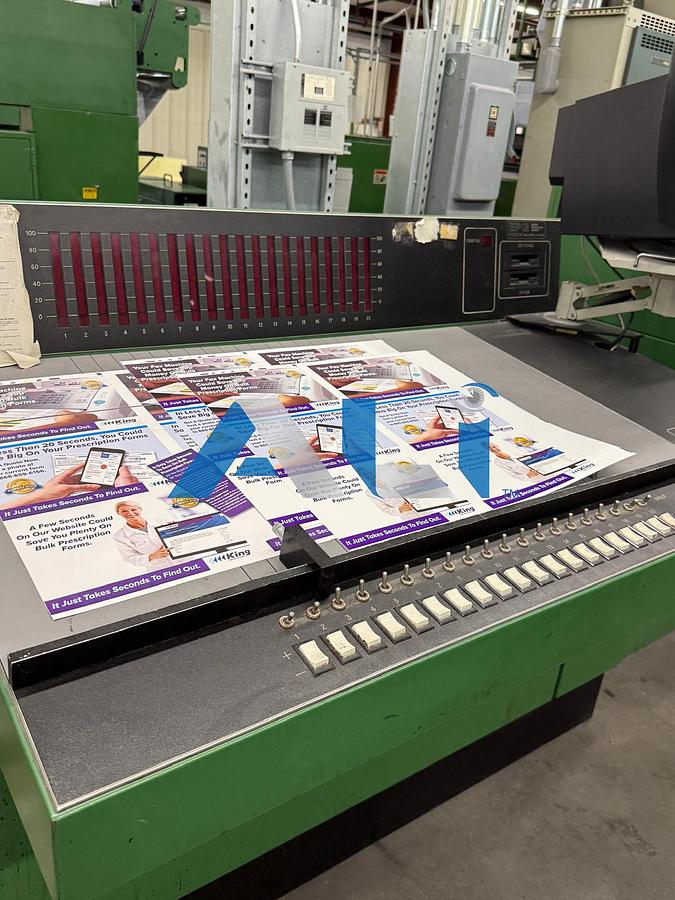

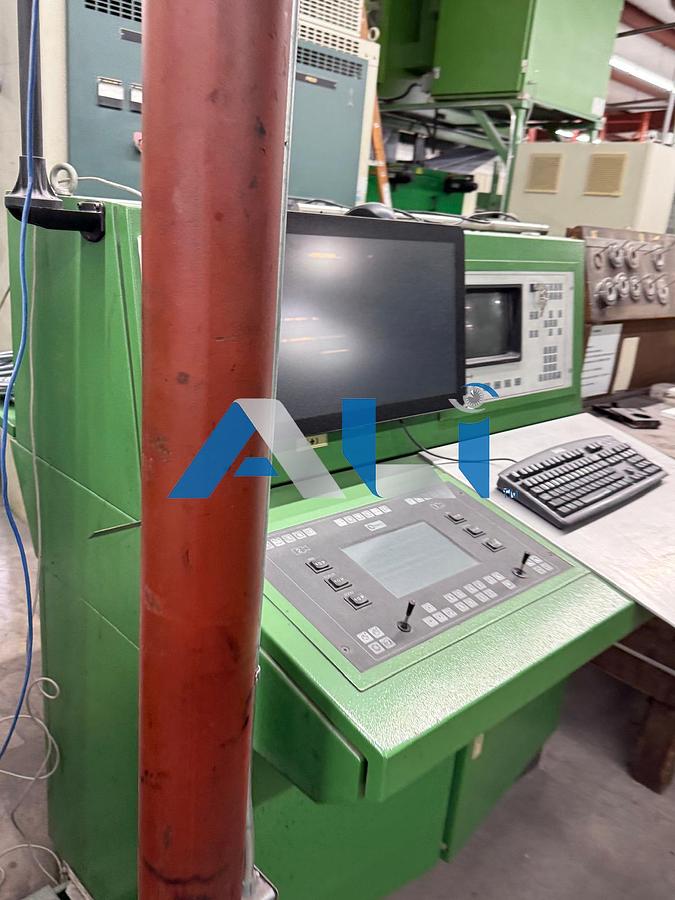

• EPG motorized ink key controls with operator console  Auto ink roll wash-up

• Back PrintingPrint units 1-4 are reversible
• Hockey sticks on print units 1-6, 9
• Turn bars between units 4-5, 5-6

• UV DryersPrime UV curing system
• Prime Smart system control
• Three units for positioning after unit l, 4, 5 or 1

• Other In-Line FeaturesDouble numbering unit (constructed for arabic numbering, barcoding or marginals)
• IDC combination remoist / scratchoff / varnish unit
• Prime UV and Proctor Strayfield model SW 25/76 RF dryer for above unit  Double filehole unit
• DK Hart die cutter with rewind
• Processing unit inc. linehole punching, vertical perfs (3 shafts) and two cross perf cylinders

• ADDITIONSIn-Line Coating Equipment Additions
• Megtec Silicone Applicator (Added June 2012)
• ASI Hot Air Drying System for Aqueous Coating
• (Added June 2012)
• Modified Silicone Applicator to 2 Sided (Added February 2013)
• Register Control
• Electromat auto register and cut-off control
• Electromat inspection system for two-sided viewing

• FolderFordyce VS 1326 single stream
• Max web width - 26 1/2"

• Sheeter
• Egan (John Brown) Model VB1026LC Sheeter

• Batcher Stacker
• Date 3/31/92
• Retrofit for 44" pile (Added November 2012)

• Rewinder
• WTI Turret Rewinder (Mod. No. 50/26.5/1200)
