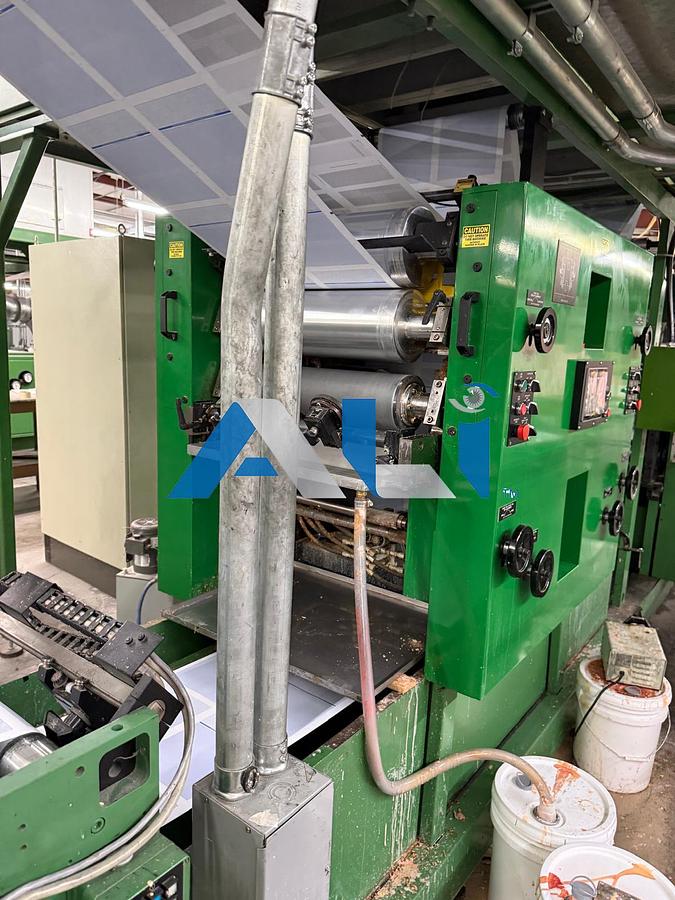

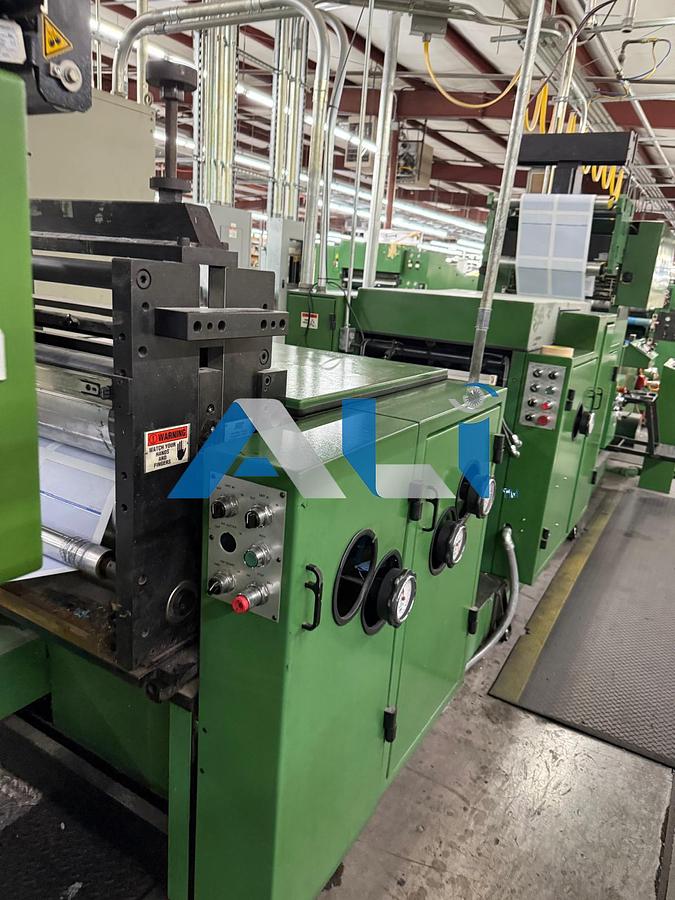

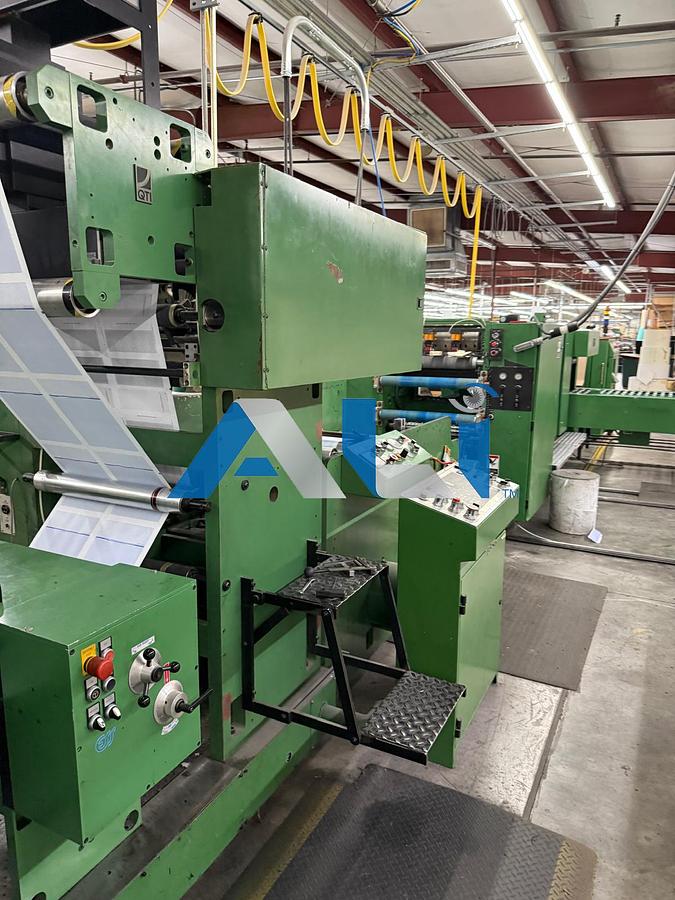

1992 RDP 200 Presser Sealer Press with Interflex Double Coater 6 Color Press (6 color double numbering front & bock) 22” x 20.5” web width

ALI Reference #: 106354

REQUEST QUOTE

1992 / 1997 / 2006 / 2018 RDP 200 Presser Sealer Press with Interflex Double Coater 6 Color Press

(6 color double numbering front & bock) 22” x 20.5”  web width

Pressure sealer mailers

Security envelopes

Purchased in 1992 with 2 units

1997 2 units rebuilt for UV and UV Dryers. Also Adding 4 more UV Units

2006 modified for pressure seal production. Two cohesive applicators and two RF dryers.

2018 two Interflex coaters we added.

General

•           Speed - Mechanical Drive -50fpm to 1500fpm

•           Gear Lubrication - Continuous oil bath

•           Drive Train - "lilbular drive shaft with flexible steel disk couplings at gear boxes

•           Press Drive - Electric DC, Drive

•           Max web width - 20 1/2"

•           Max print width - 20"

•           Print cylinder circumference - 22"  Web Break Detectors - Electric eye style mounted over the web

•           Frames - 2" thick cast iron (28" inside frames)

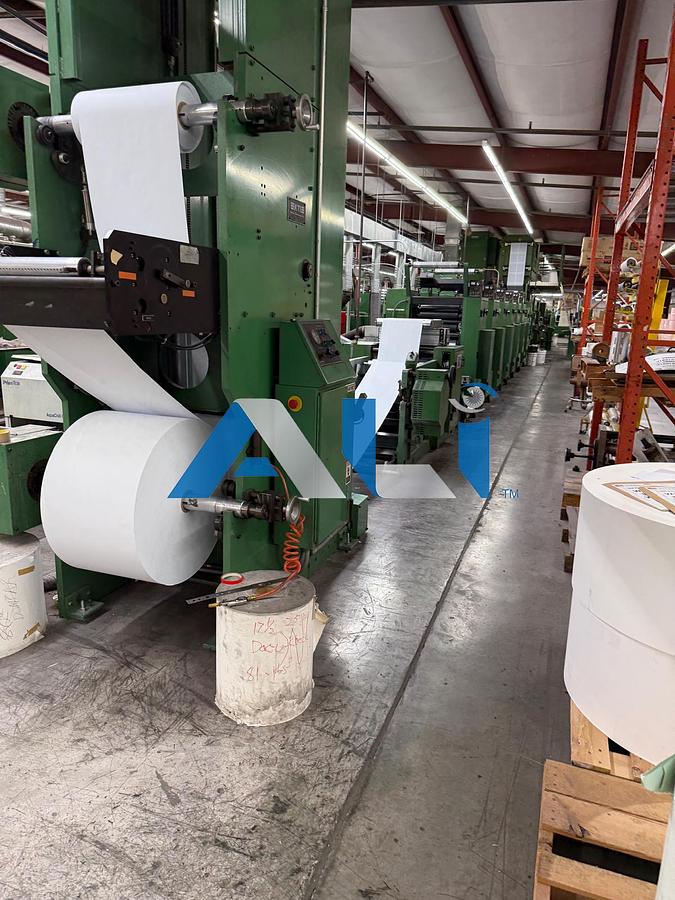

Unwind

•           Max web Width — 20.5"

•           Max roll Diameter - 50"

•           MaxRoll Weight . 1500*

•           Inside core diameter • 3", 5" • Programmable decurler

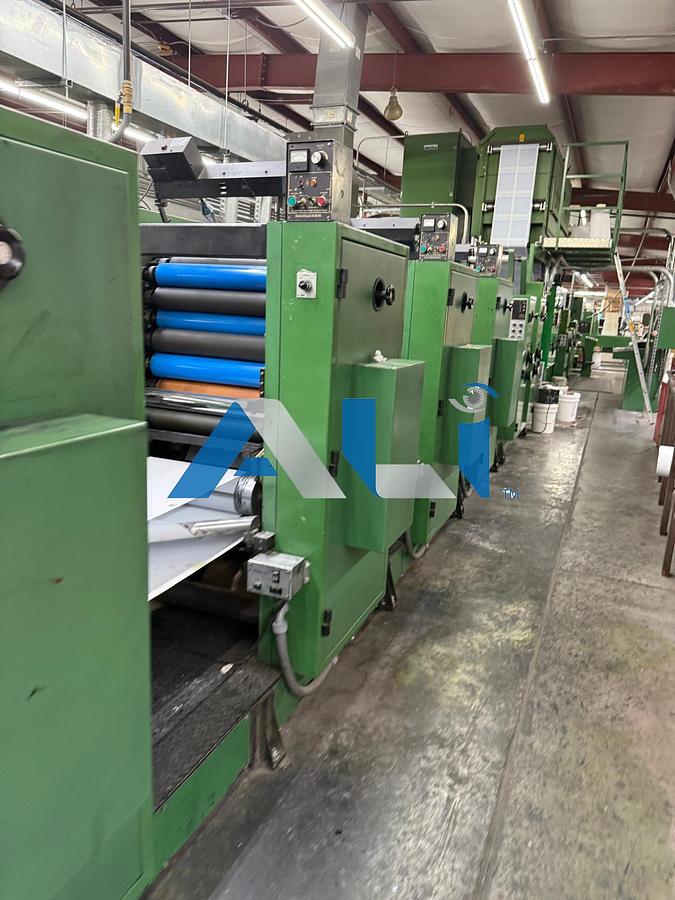

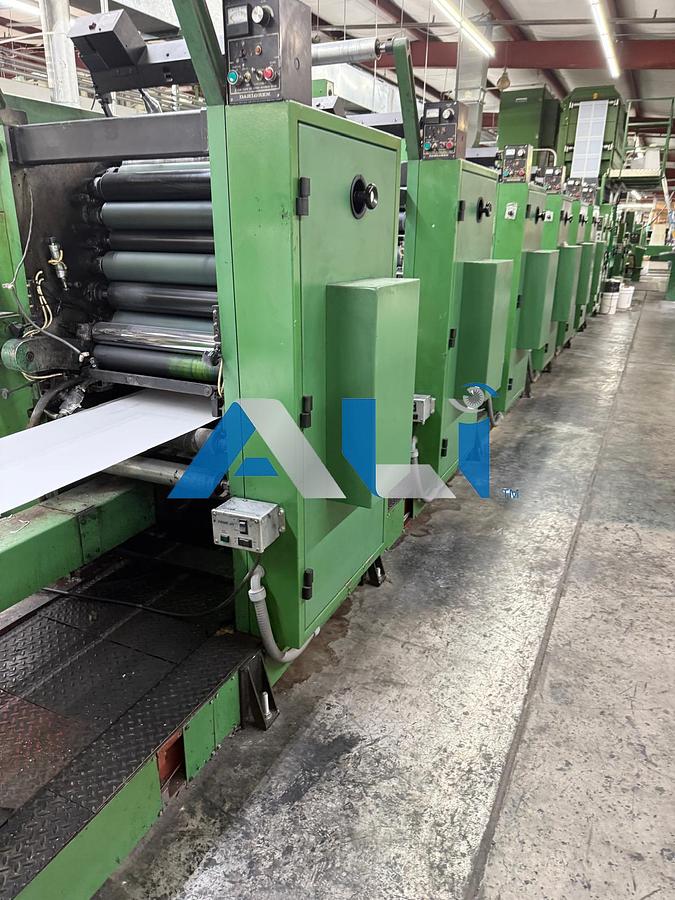

• print unitsNO. Units - 6
• Reel-in Blankets
• Motorized Circ. Register With remote control
• Motorized plate side lay With remote control
• Plate cylinder skewing and form roll adjustment
• Auxiliary Unit drive motors • 360 deg circumferential gear boxes
• Dahlgren dampening system
• Chilled vibrators each unit (Tri Service Chiller)
• Ink Agitators • Auto Ink roll wash-up

• Back PrintingHockey Sticks on units 1 & 2
• Turn Bars between units 2 & 3 and umts 3 & 4

UV Dryers

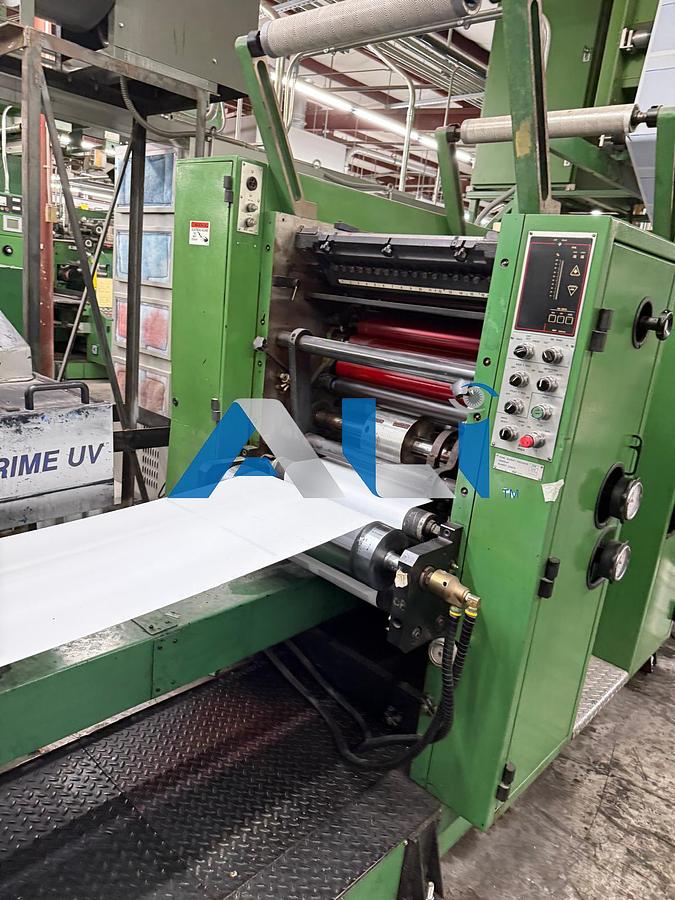

•           Prime UV 400-600 watt curing system

•           Prime Smart system control

•           Inter-station drying

Pressure Seal Cohesive Application Equipment

•           Interflex Double Coater (2018)  Strayfield Pastron RF Dryer

•           ESS magnetic die unit (perf flattening)

•           Removable-blade perf cylinders for V, C and eccentric Z

Other In-Line Features

•           Interllex double ujater

•           Double numbering unit (constructed for arabic numbering, barcoding or marginals)

•           Double filehole unit (one fixed and one removable cartridge)  Linehole punching (one)  provision

for die insert

•           Vertical perfs (2 shafts)

•           TWO cross perf cylinders

Register Control

•           QTI video register control

Rewinder

•           Rewinder 50"

• FolderFordyce VS 1320 single stream
• Max web width - 20 112"

Rewind

•           GEC Auto Turret Rewinder

•           Max roll diameter 50"

•           Shaft for 3", 5", 6" ID core

Sheeter

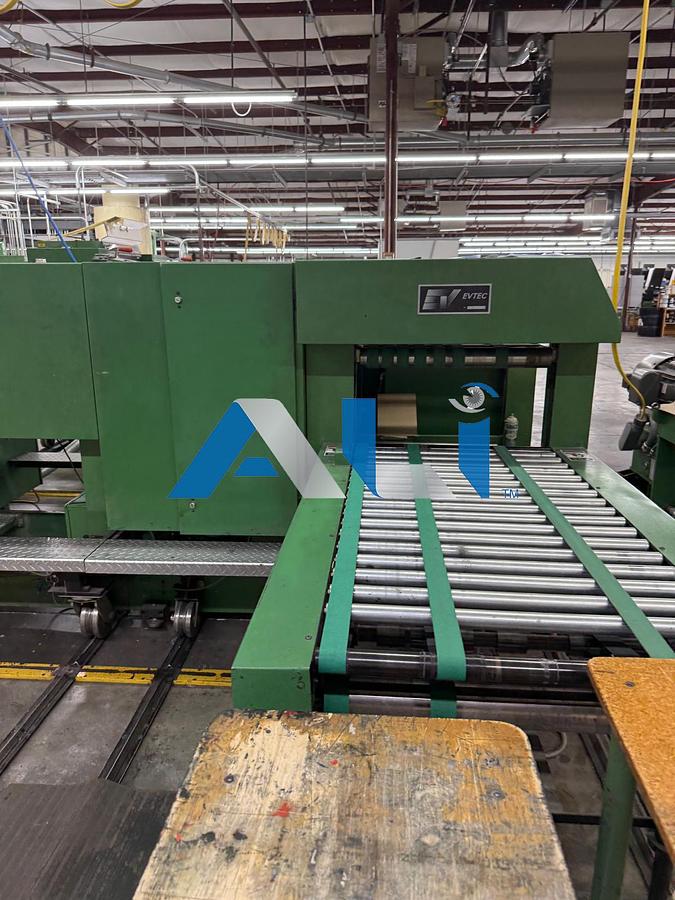

•           Evtec Mode 1EC/EB 2028 Sheeter/Batcher Stacker
