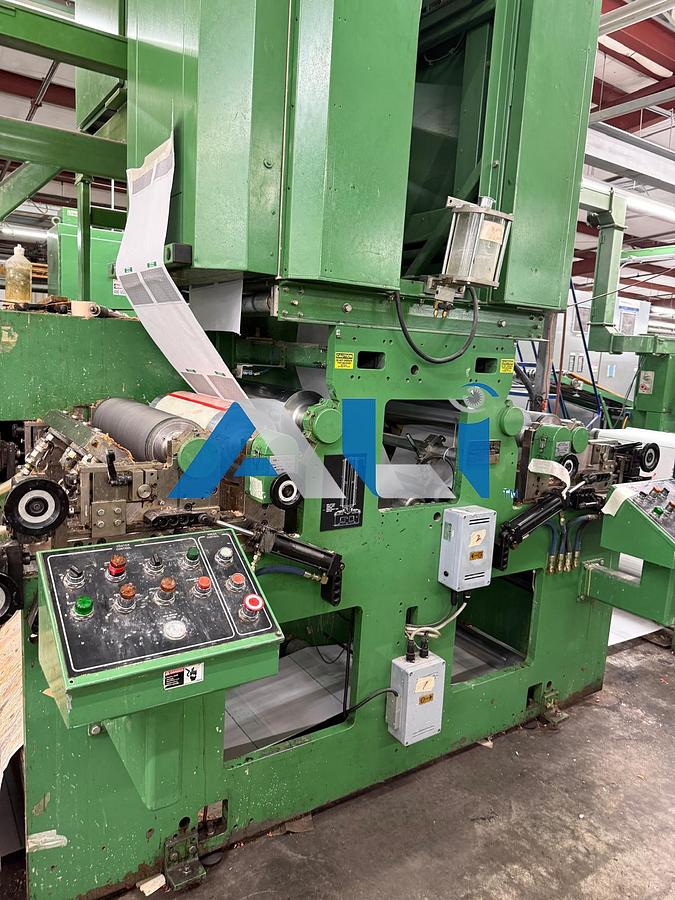

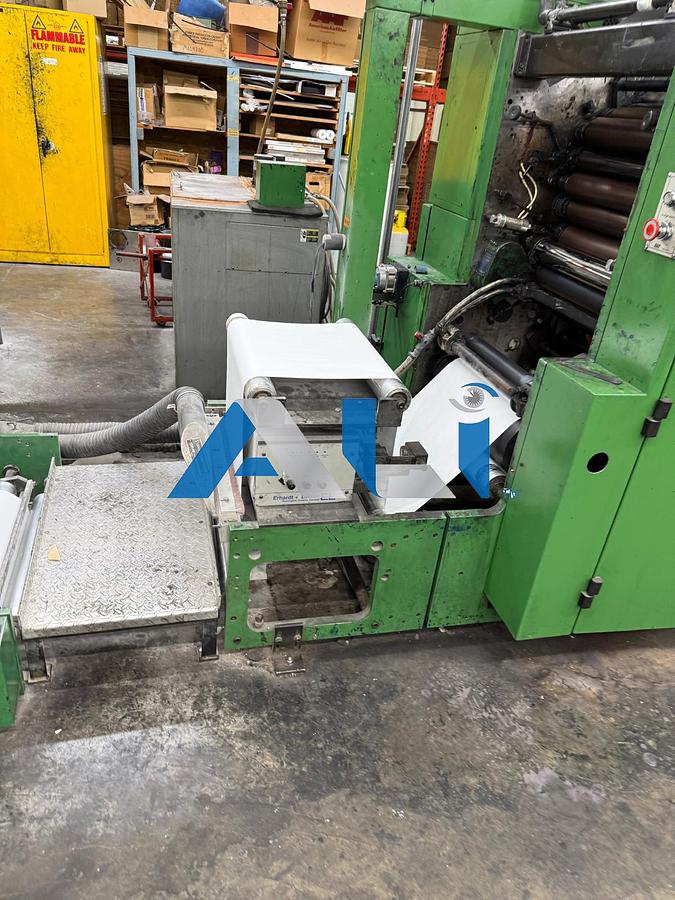

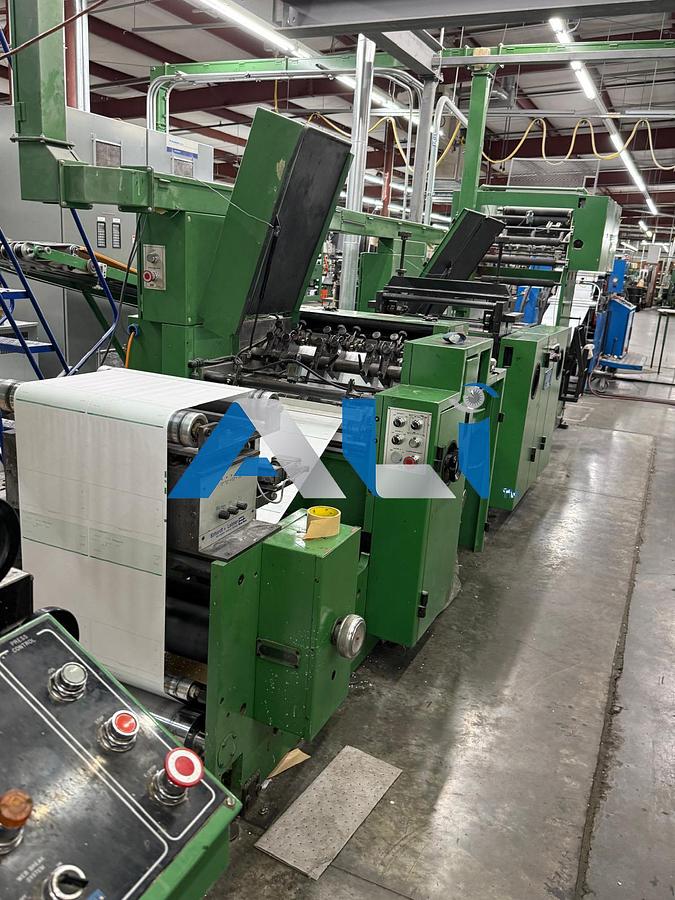

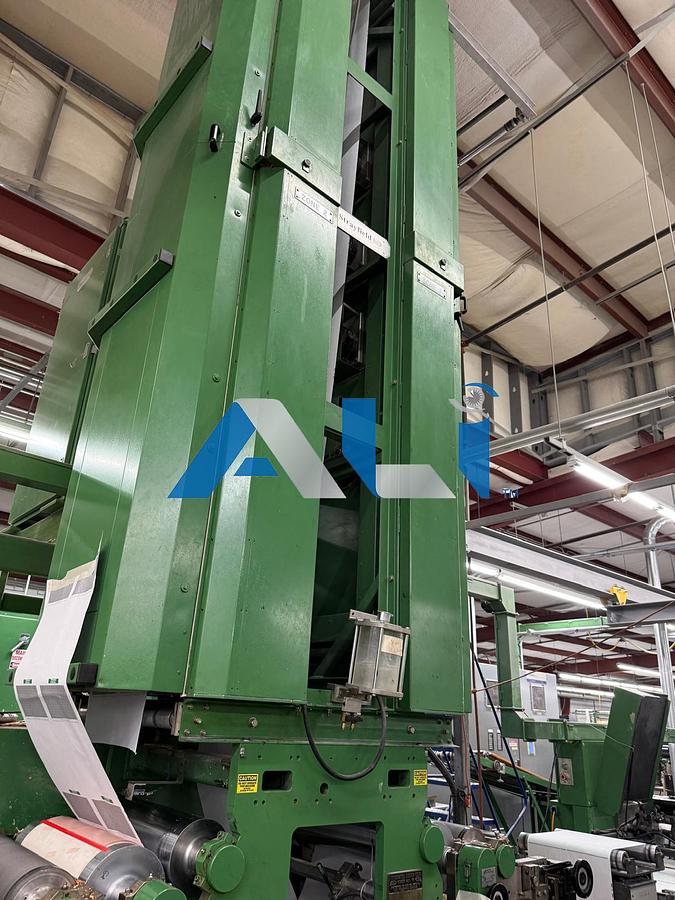

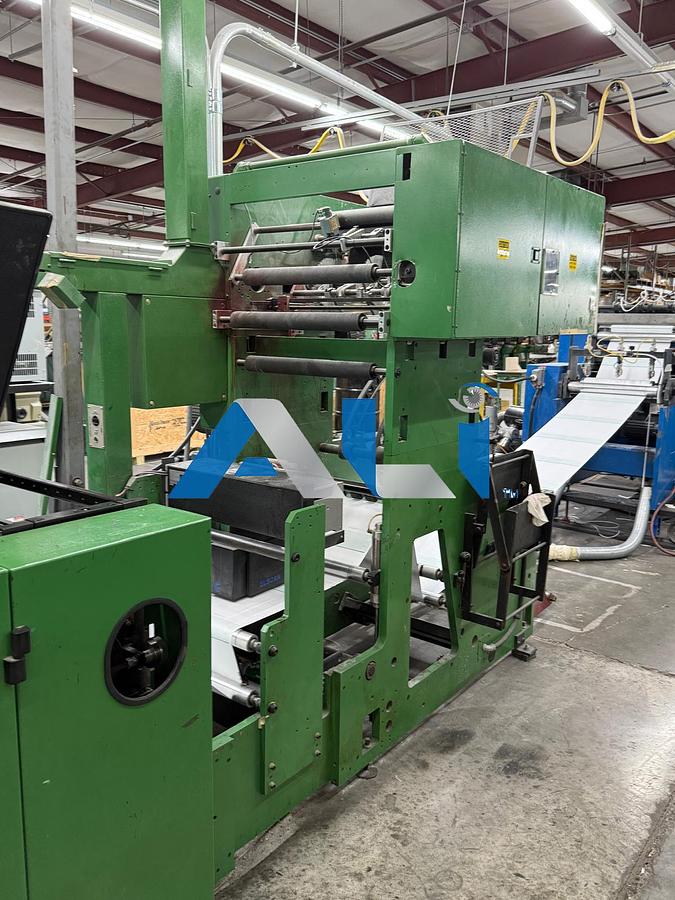

1992 SR200 RDP Variable Size Press

1992 SR200 RDP Variable Size Press

Cylinder Size - 17", 22", 28"

Very little use on machine

Pressure Sensitive

Postcards

Government 1099 forms

• GeneralSpeed - Mechanical Drive -50fpm to 1200fpm
• Gear Lubrication - Continuous Oil bath
• Drive Train - Shaft with flexible steel disk couplings at gear boxes
• press Drive - Electric DC Drive
• Max web width - 20 1/2"
• Max print width - 20"
• Cylinder Size - 17", 22", 28"
• Web Break Detectors - Electric eye style mounted over the web
• Frames - 1.25" Steel (2P inside frames)

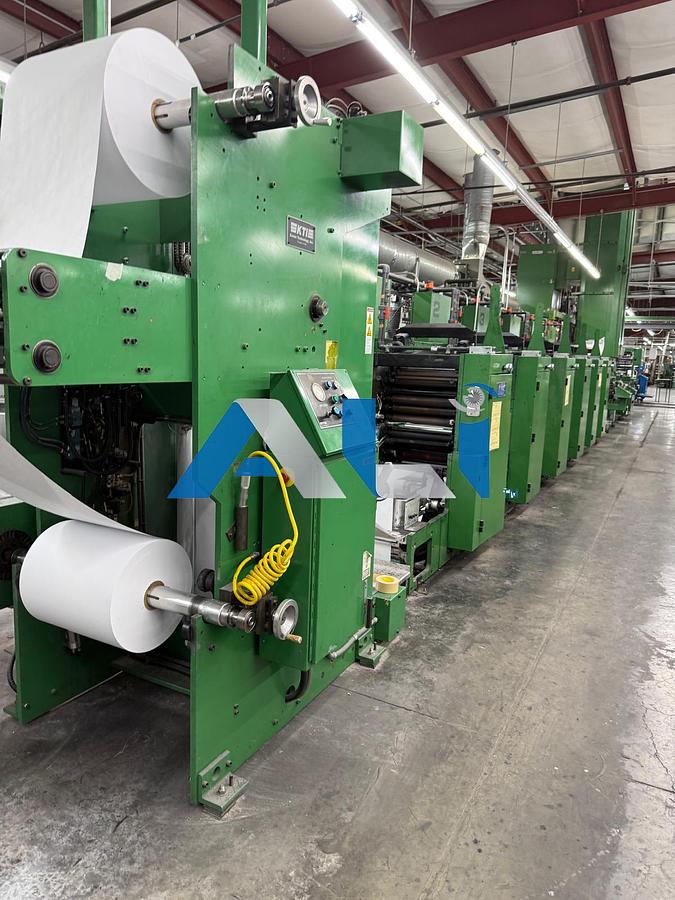

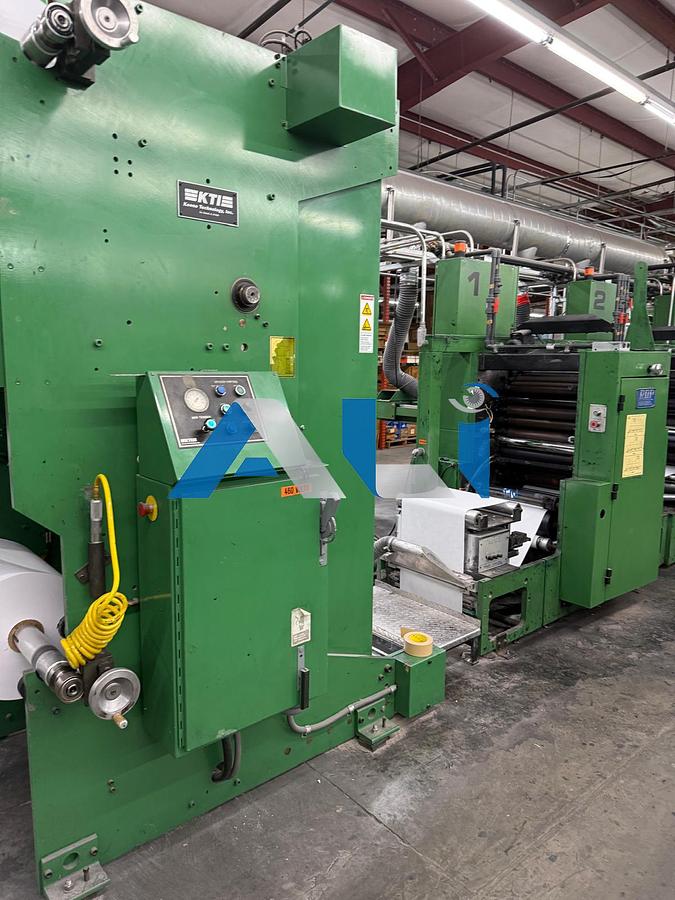

• UnwindKTIMode11.S2150.BAutomaticLapSplicer
• Max web Width - 21"
• Max roll Diameter - 50"
• Sized to lift 21 web width (50" diameter)
• Inside core diameter - 3", 5"
• Programmable decurler
• Doyle two-sided web cleaner
• E & L Electronic web guide

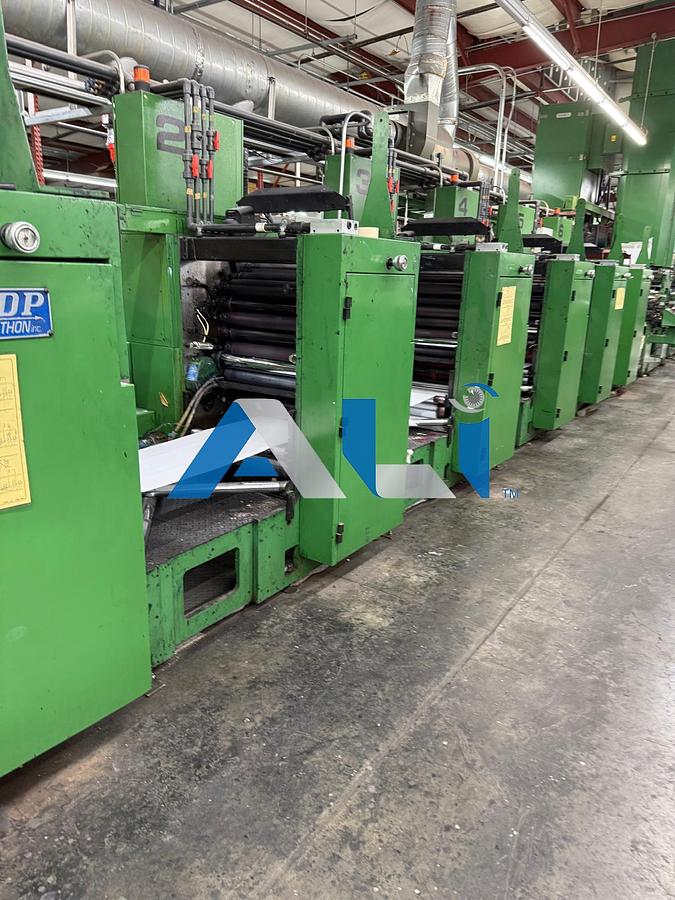

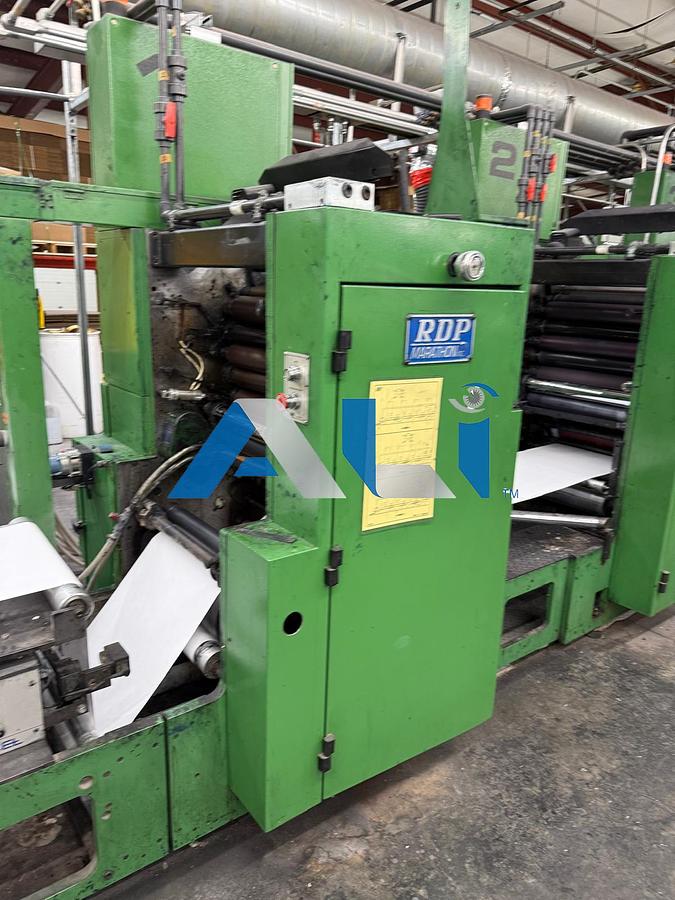

• Print UnitsNO. print Towers 6
• Print Insert Sizes - 17", 22", 28" (6 of each size)
• Four form roller system
• Reel-in Blankets
• Motorized Circ. Register with remote control  Motorized plate side lay with remote control  plate cylinder skewing and form roll adjustment  Auxiliary Unit drive motors
• 360 deg circumferential gear boxes
• Centralized, refrigerated recirculator
• Chilled oscillators
• Dahlgren dampening system
• Chilled vibrators (Tri Service Chiller)
• Ink Agitators • Auto ink roll wash-up
• Numbering InsertsOne each Of 17” , 22” and 28” - used in last print tower
• Two 6” marginal sleeves of each size.
• Back PrintingTurn bars between units I & 2, 2 & 3, and 3 & 4
• UV DryersPrime UV 400-600 watt curing system
• Prime Smart system control
• Inter-station drying
• Coater/DryerIDC Model* SFC-205 (2 coating heads for front & back)
• proctor Strayfteld two-sided Radio Frequency Dryer
• Cylinder sizes - 17", 22", 28"
• Web ViewerBST Promark Eagle two-sided web viewer
• Other in-line featuresLinehole punching (one)
• Provision for die insert
• Vertical perfs (2 Shafts)
• Double filehole unit (Can substitute magnetic diecut cylinders)
• Two cross perf inserts (Can substitute magnetic diecut cylinders)

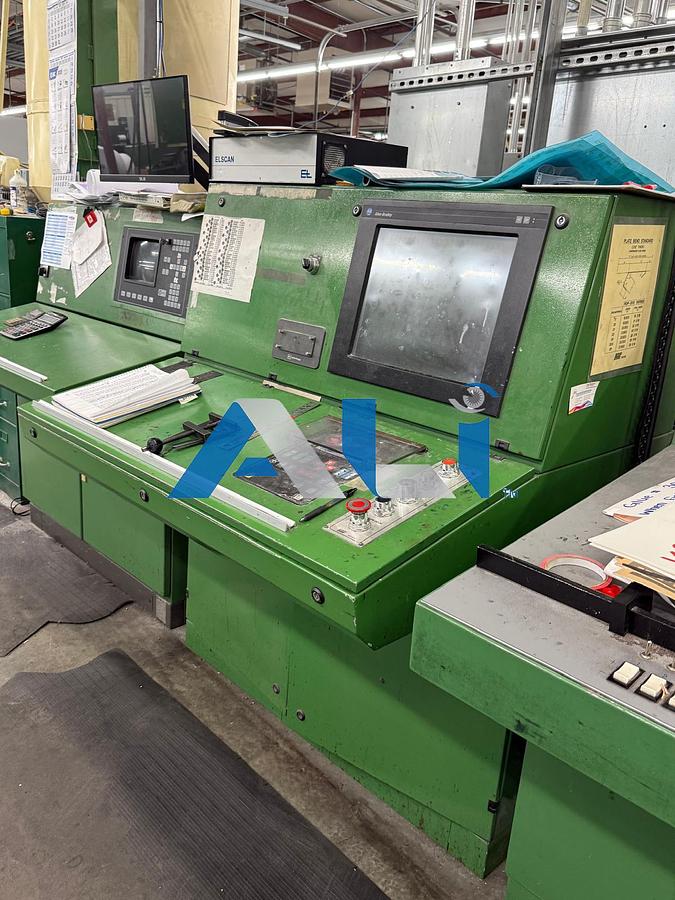

Automatic Register Control & Console

Ink Key Control & Console

Press Contorl Console

• Rewind50” Rewinder
• FolderFordyce Folder

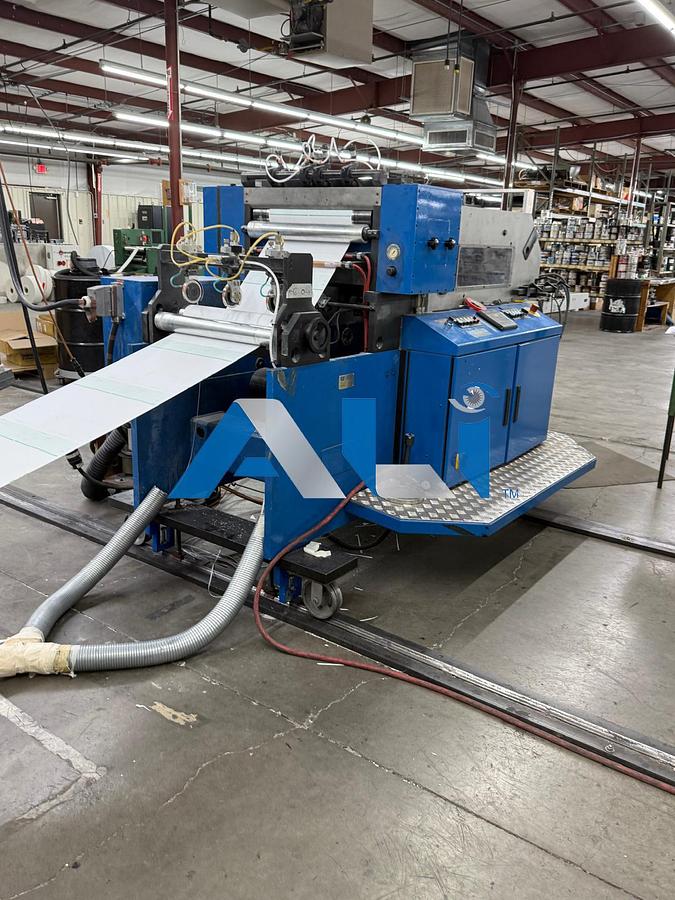

• SheeterESS Pantec sheeter (Starwheel type)
