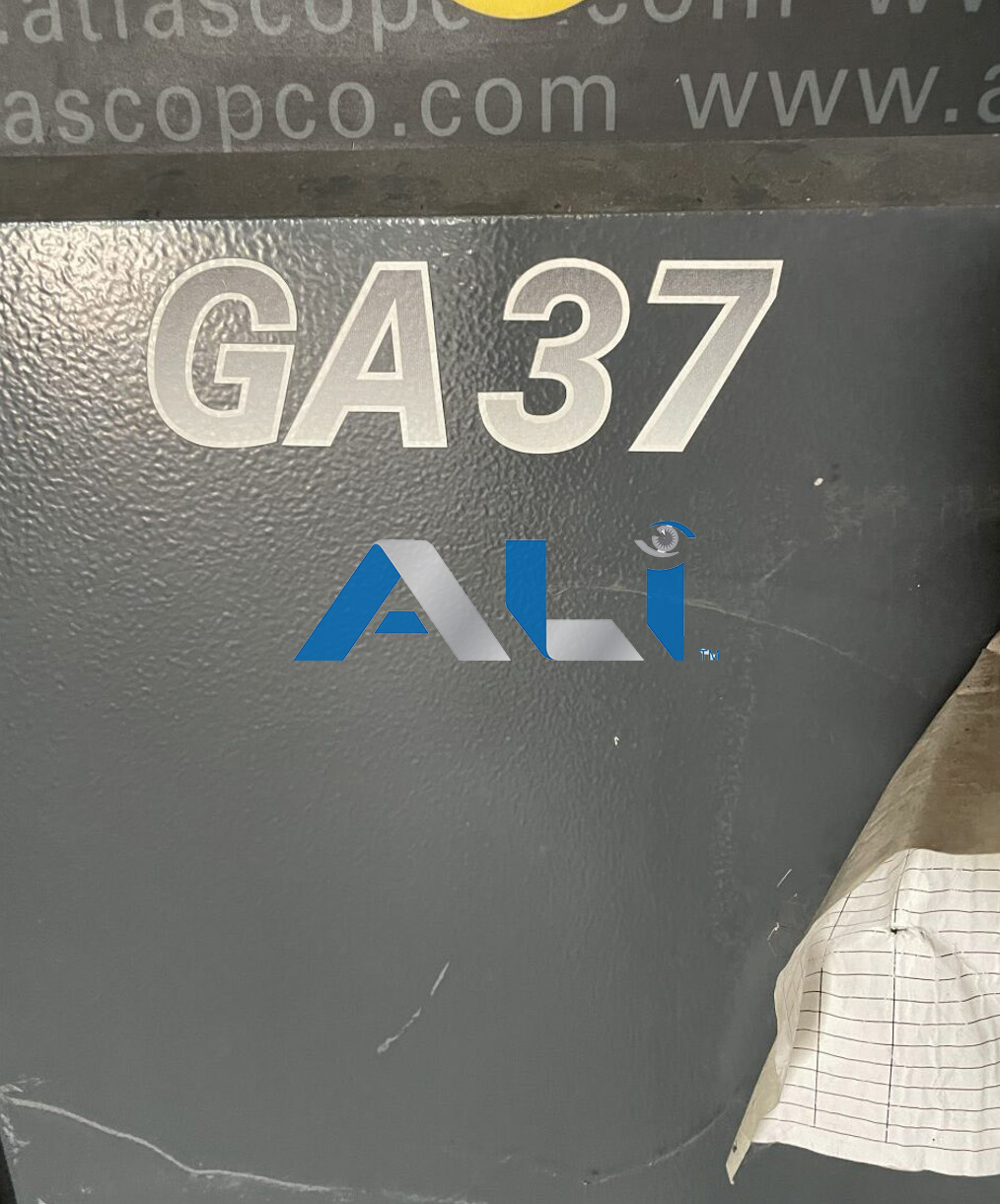

2012 Atlas Copco GA37 50 HP Rotary Screw Compressor

ALI Reference #: 106407

Details:

• Horsepower: 50 hp (37 kW)
• Capacity (FAD): ~ 211 CFM
• MAWP: 9 Bar
• Working Pressure: 132 PSI
• Motor Type: TEFC (Totally Enclosed Fan Cooled), NEMA Premium efficiency
• Voltage Options: Typically 460V / 3 Phase / 60Hz
• Drive System: Gear drive or belt drive (depending on the specific GA sub-variation)
• Cooling: Air-cooled or Water-cooled
• Noise Level: 66 – 71 dB(A)
• Voltage: 460 V / 60 Hz. / 3 Ph.
• Dimensions & Weight (Approximate)Weight: ~ 1,735 lbs.
• Dimensions: ~ 72" L × 35" W × 71" H
