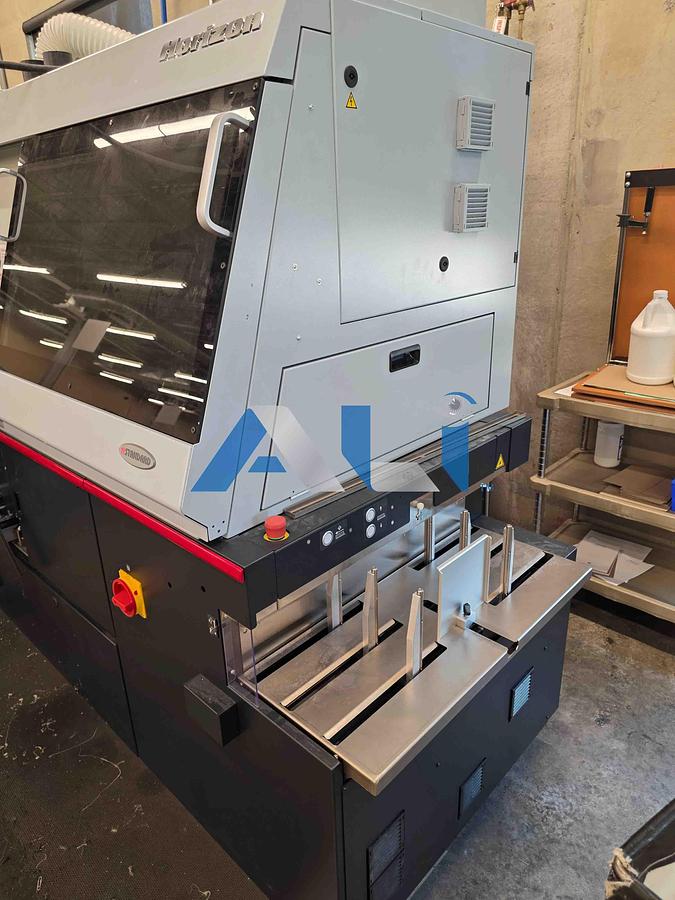

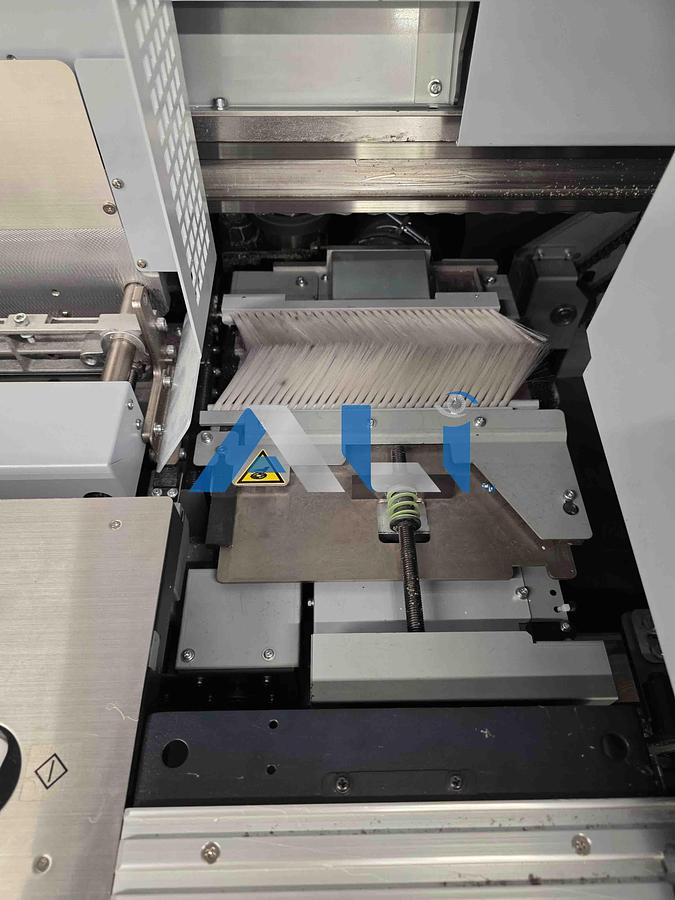

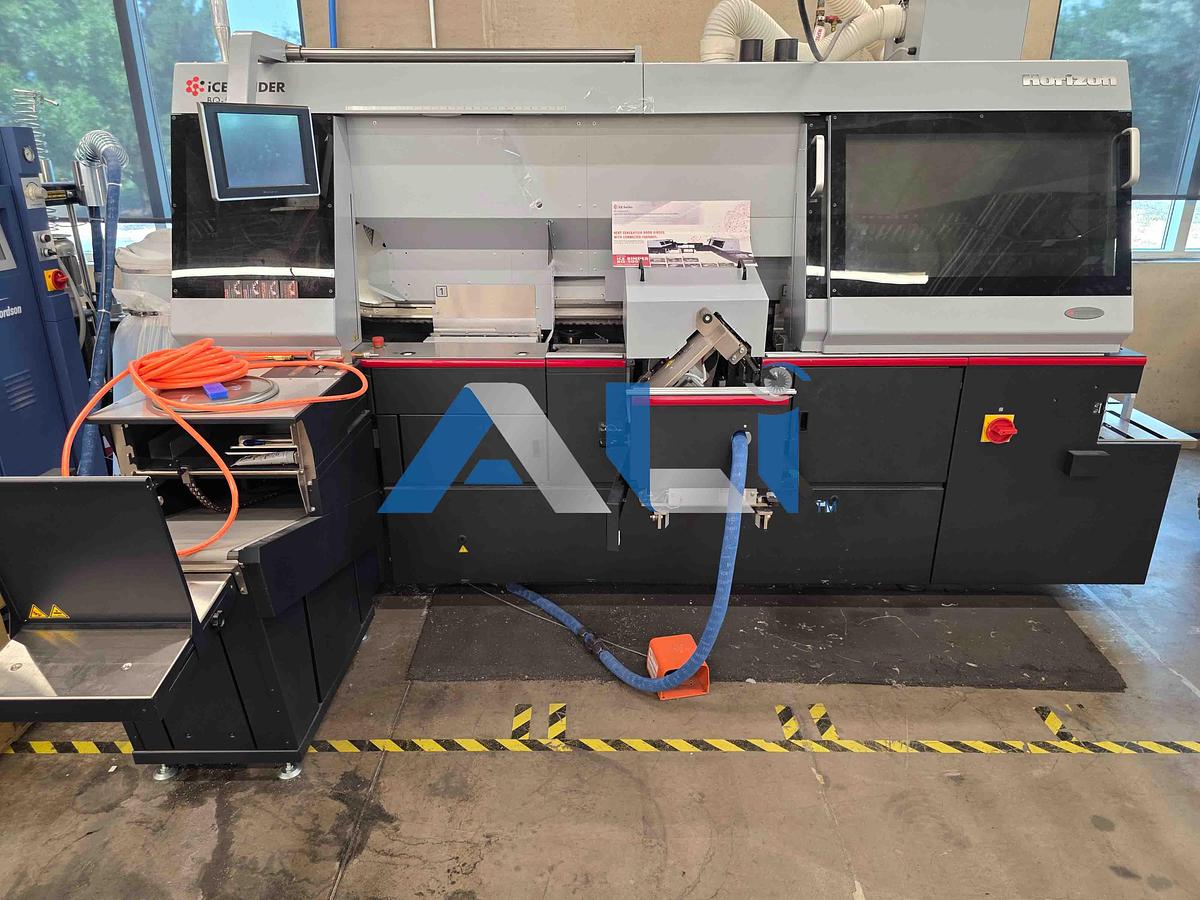

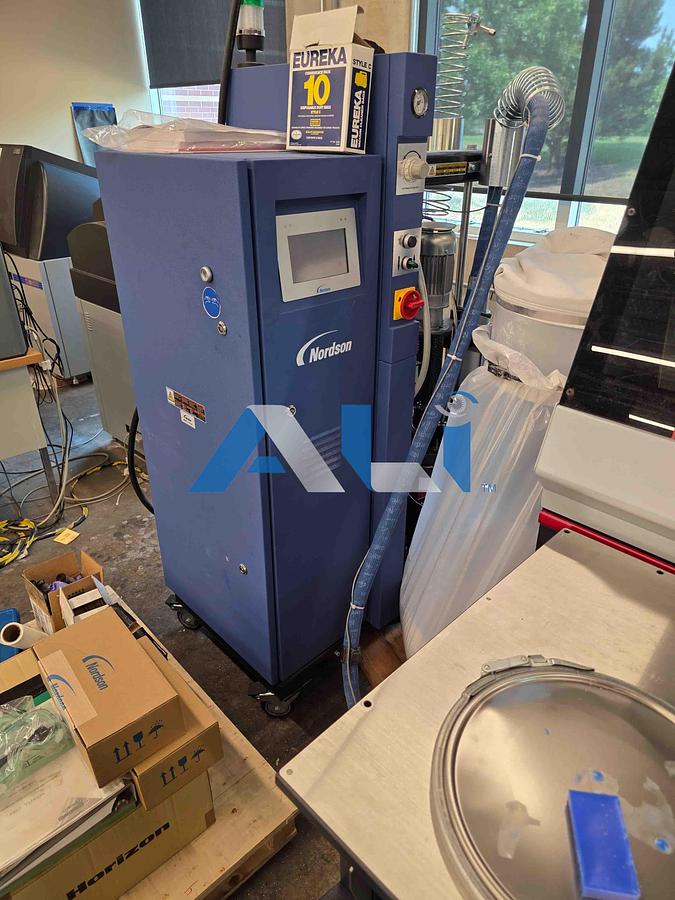

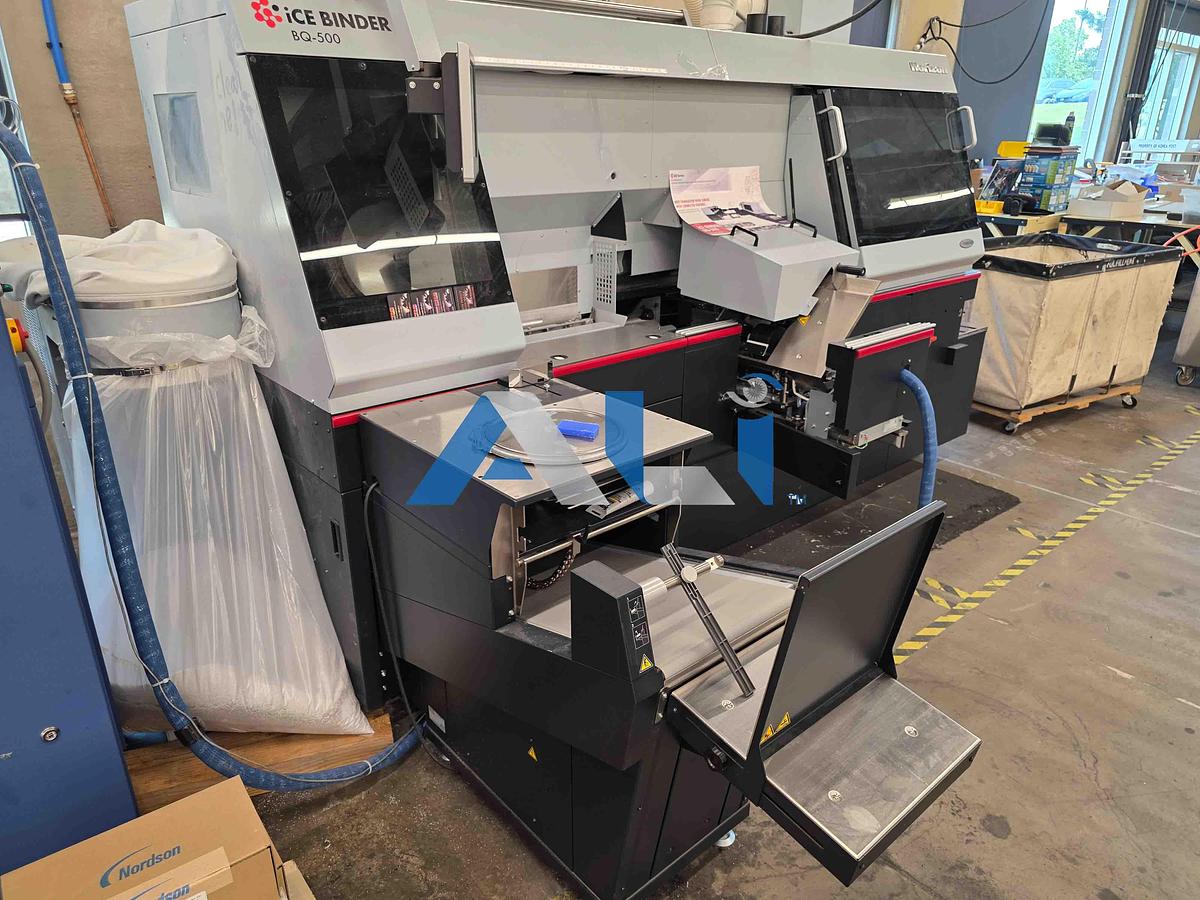

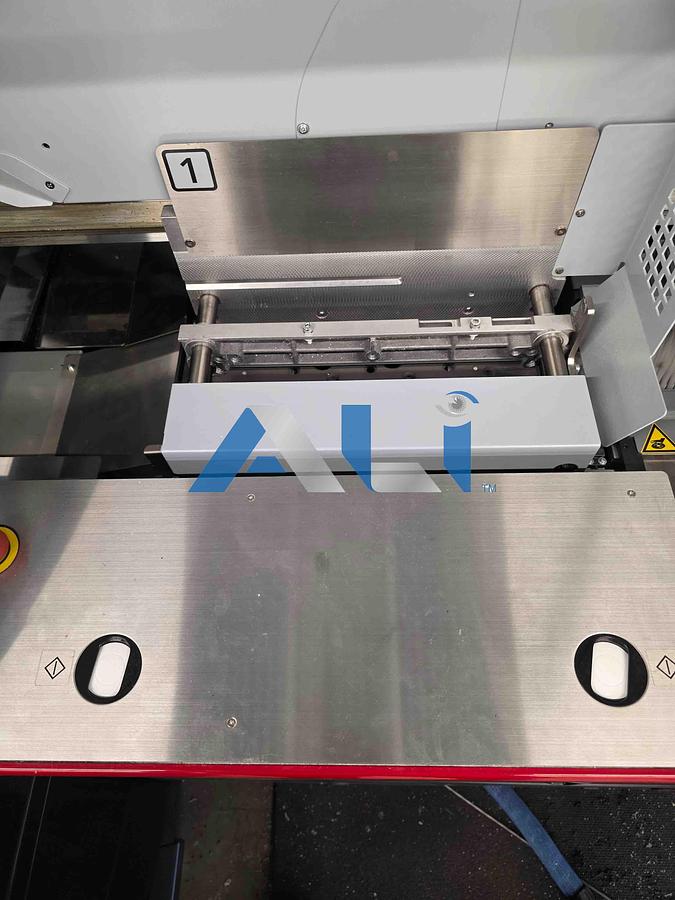

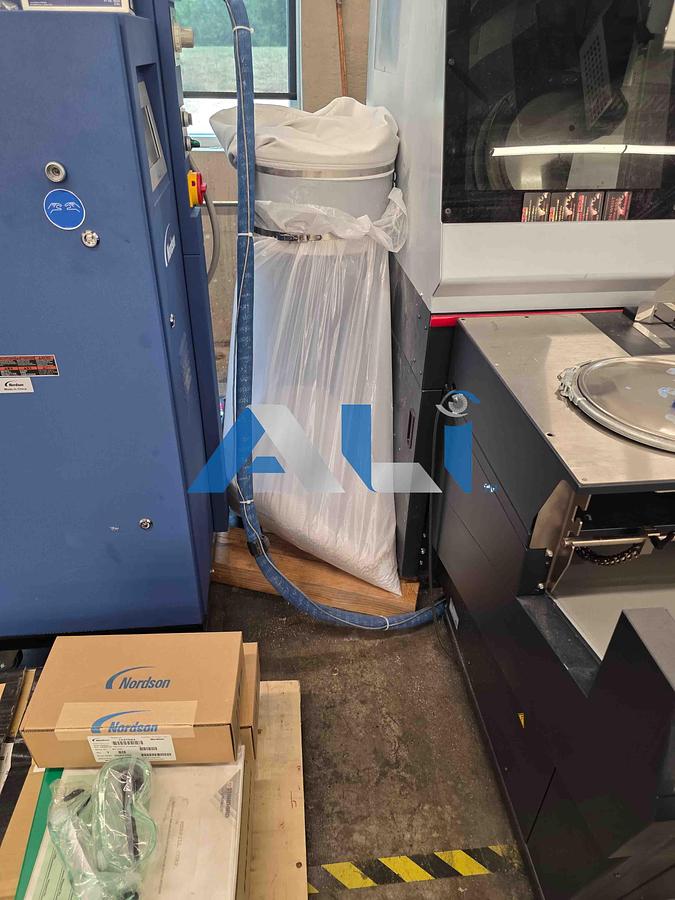

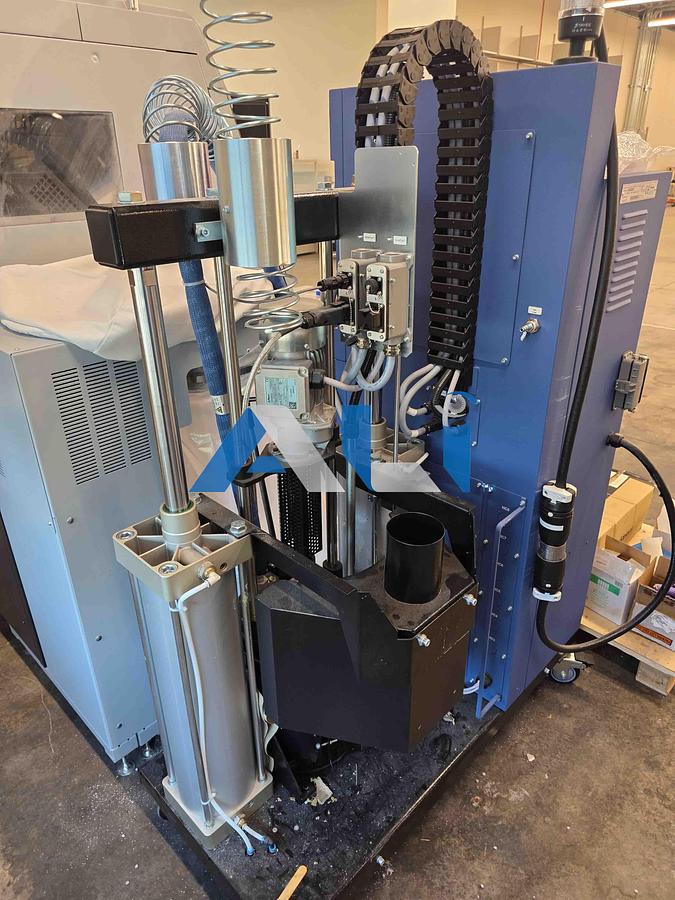

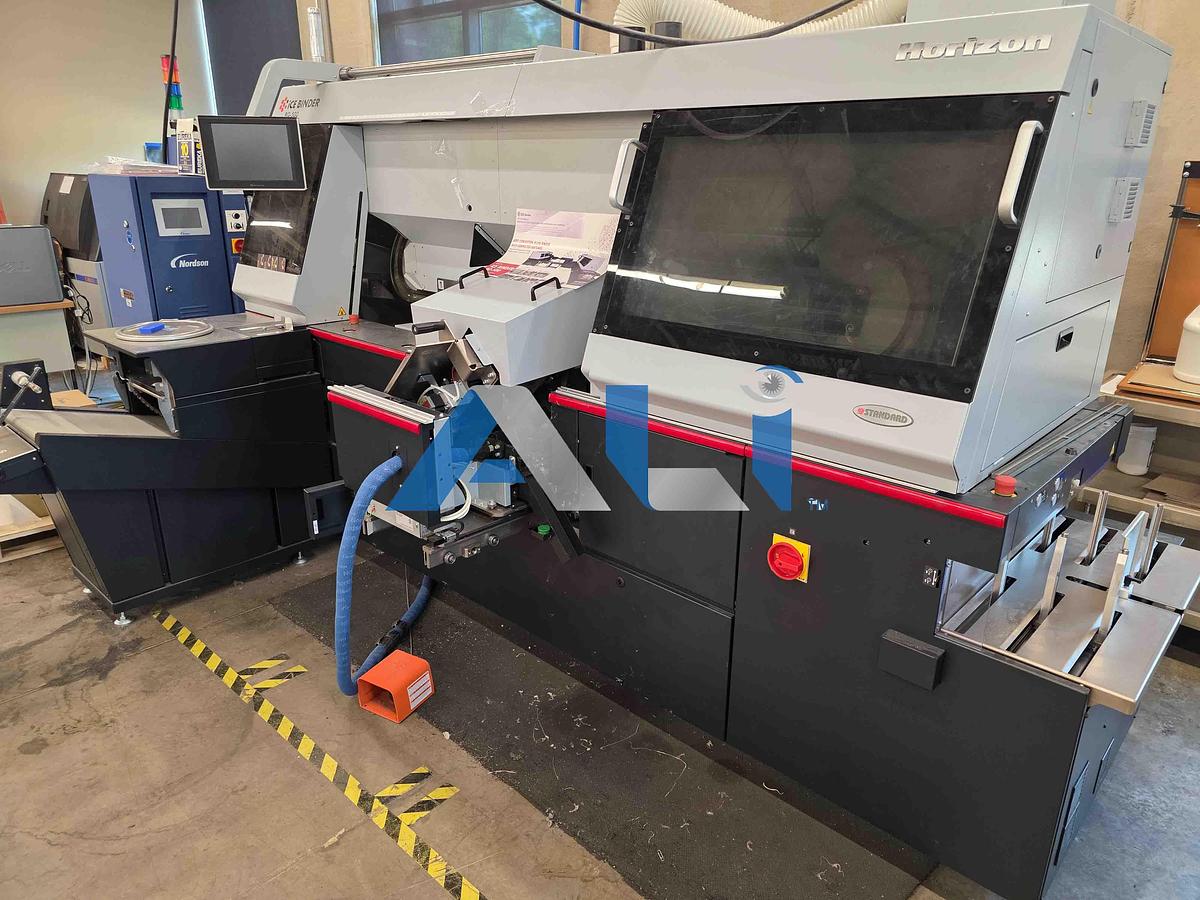

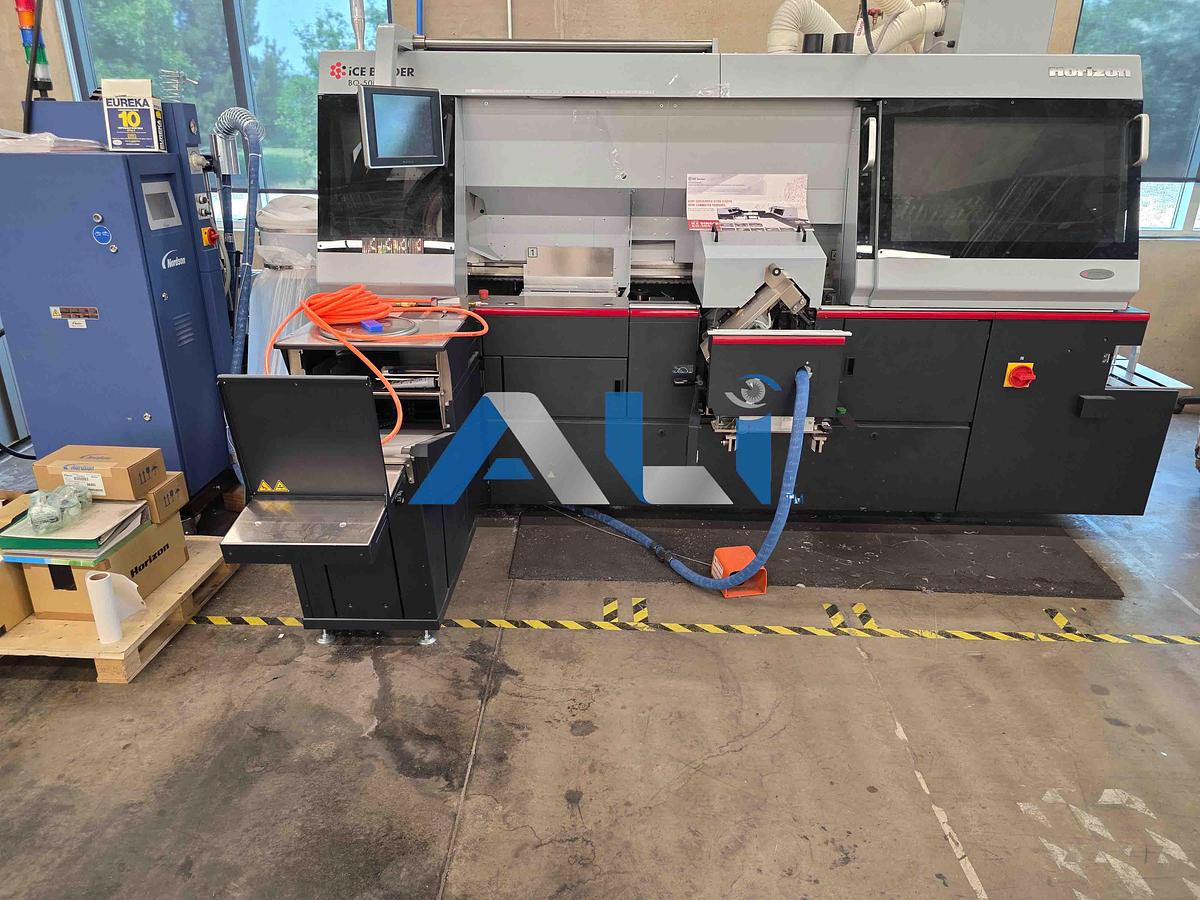

2024 Horizon BQ500N ICE PUR Perfect Binder

ALI Reference #: 106413

Details:

• ​Binding Type: Binding with milling, Binding without milling and Pad binding
• Glue Type: PUR
• Number of Clamps: 4

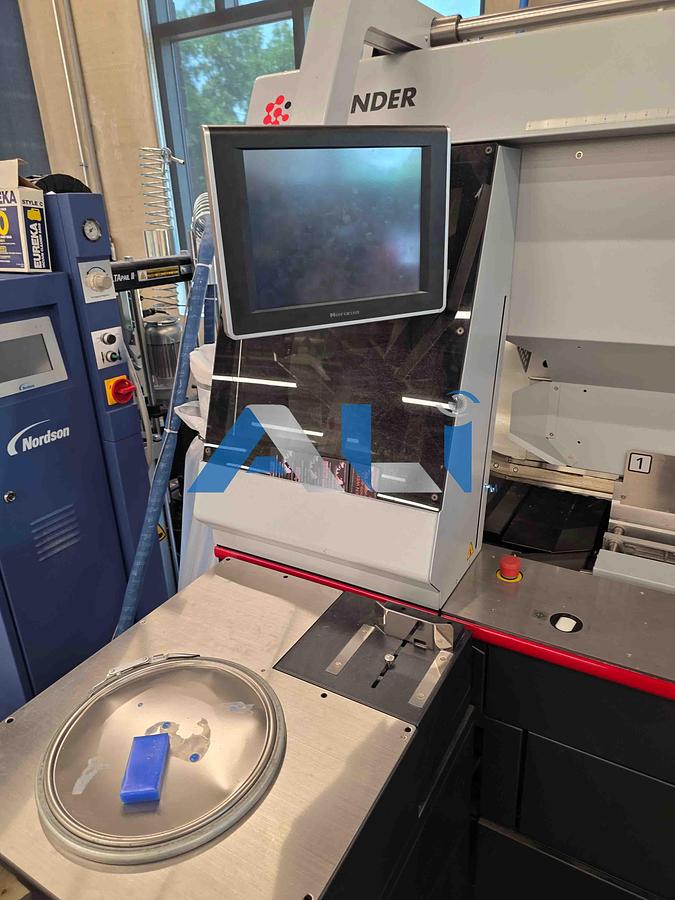

• Touch Screen

Book Block Size:

Spine Length x Fore-edge Length

• Max. 320 x 320 mm or 12.595” x 12.595”
• Min. 145 x 105 mm or 5.71” x 4.135”

Book Block Thickness:

• Min. 1 mm or 0.04”
• Max. 65 mm or 2.555”

Cover Size:

Length x Width

• Max. 320 x 670 mm or 12.595” x 26.375”
• Min. 135 x 225 mm or 5.315” x 8.860”

Cover Weight Range:

• Normal Paper 81.4 to 302.4 gsm
• Coated Paper 104.7 to 348.9 gsm

Cover Stack Height: Max. 150 mm or 5.9”

Cycle Speed:

• Cover Binding (PUR glue): Max. 1,000 cycles per hour (PUR)
• Pad Binding: Based on cover binding (The glue temperature diff ers depending on conditions)
• Lining Binding: Max. 900 cycles per hour

Machine Dimensions:

• Without delivery stacker and milling blower duct: W3,260 x D1,130 x H1,840 mm (+ pole lamp 215 mm) or W128.4” x D44.5” x H72.5” (+ pole lamp 8.5”)
