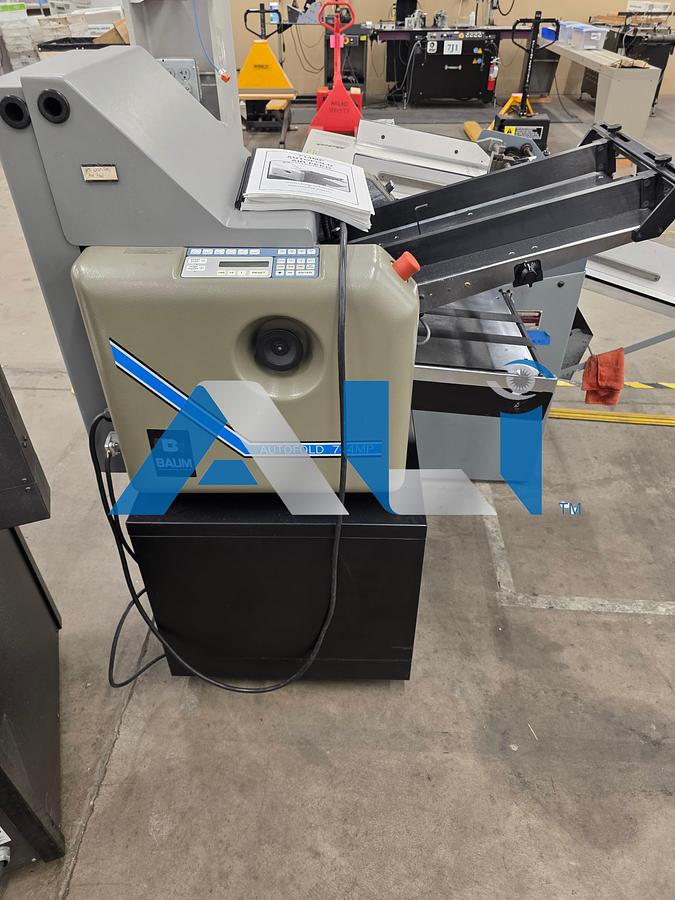

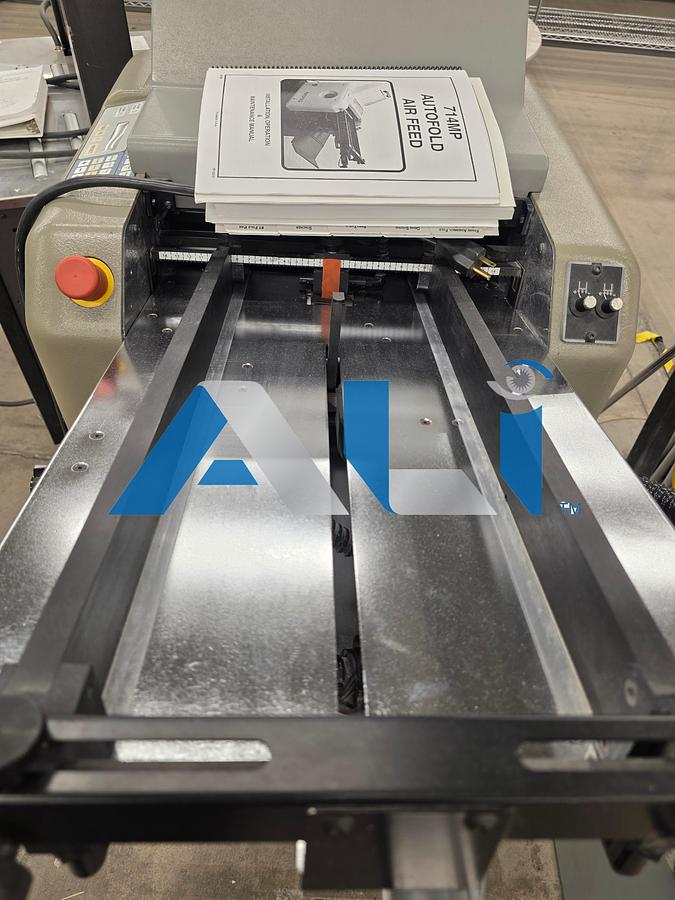

2003 Baum Autofold 714 MP Paper Folder

The 2003 Baumfolder 714 Friction Feed Paper Folder is a versatile tabletop folding machine designed for bindery and finishing applications. Below are the key specifications from the 2003 installation/operation manual

Paper Size & Fold Types

• Sheet size range: 3″ x 5″ to 14″ x 20″ (7.6 x 12.7 cm to 35.5 x 50.8 cm)
• Folds available: Single fold, Letter fold, Fan fold, French fold, Double-parallel fold, Double letter fold, and Engineering fold
• Minimum size fold: 2″ (5 cm)
• Maximum size fold: 13.5″ (34.3 cm) per fold plate

Performance & Feeding

• Feed table pile height: 2″ (5 cm)
• Fold roll diameter: 1½″ (3.8 cm)
• Fold roll width: 14¼″ (35.8 cm)
• Fold plate depth: 13.5″ (34.3 cm) for both #1 and #2 plates
• Fold roll material: Urethane
• Slitter shaft diameter: 7/8″ (2.2 cm)
• Fold roll speed: Infinitely variable from 0″/min to 7200″/min

Paper Weight Capacity

• Minimum: 16# bond (60 g/m²)
• Maximum: 75# cover (203 g/m²)
• Air feed model max: 65 lb (29.5 kg) cover

Electrical & Mechanical

• Power: 110 VAC, 60 Hz, 20 amp (NEMA 5-20R)
• Pump power (air feed model): 1500 W, 13.6 A at 115 V
• Pump power (air feed model): 14 A, single phase
• Pump power (air feed model): 250 W folder unit
